Front Side Door Garnish Molding Replacement

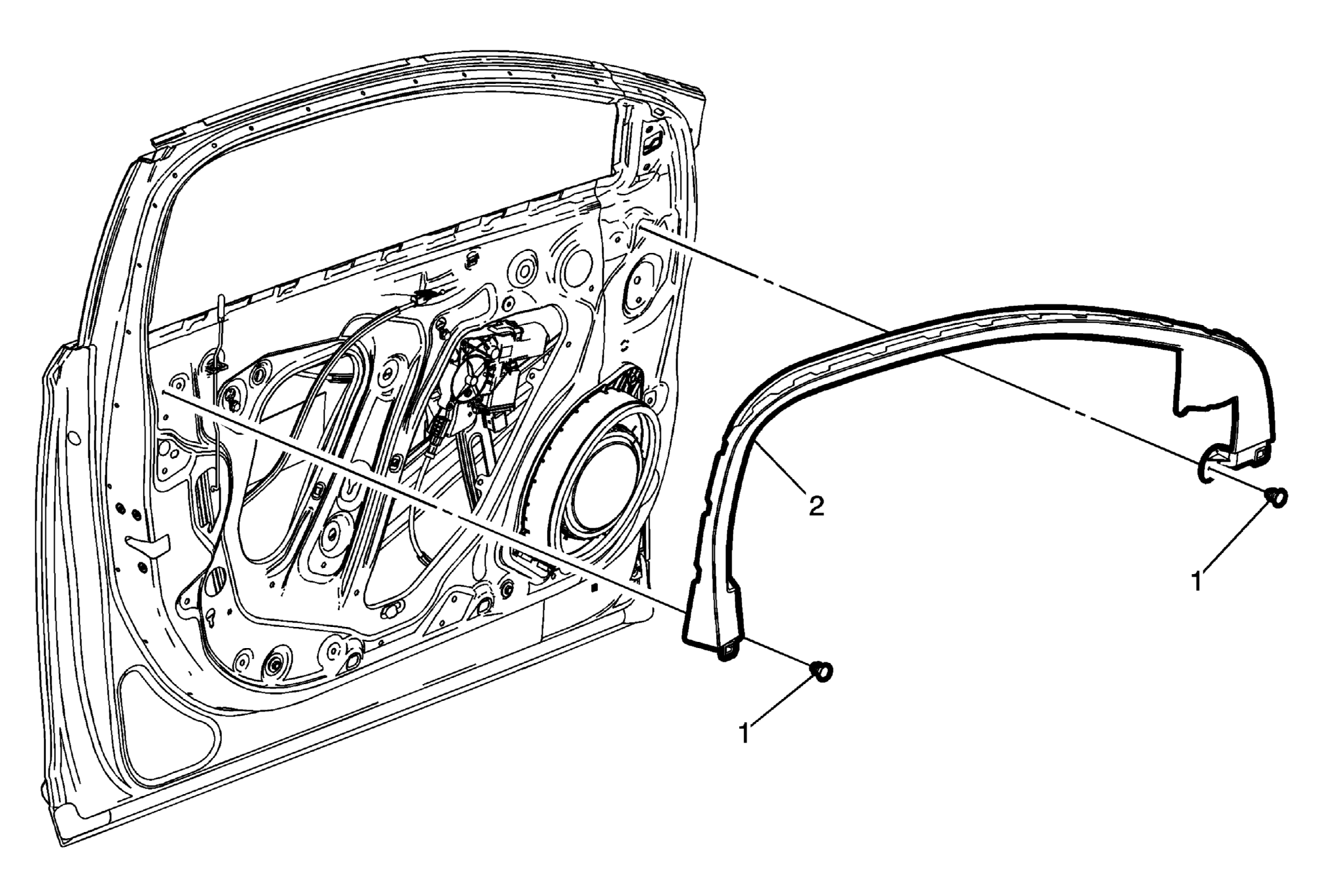

Fig 1: Front Side Door Garnish Molding & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1	Front Side Door Garnish Molding Retainer (Qty: 2)
2	Front Side Door Garnish Molding Assembly Procedure  Use a plastic flat-bladed tool to remove the push-in retainers.
