Rear Bumper Fascia Replacement

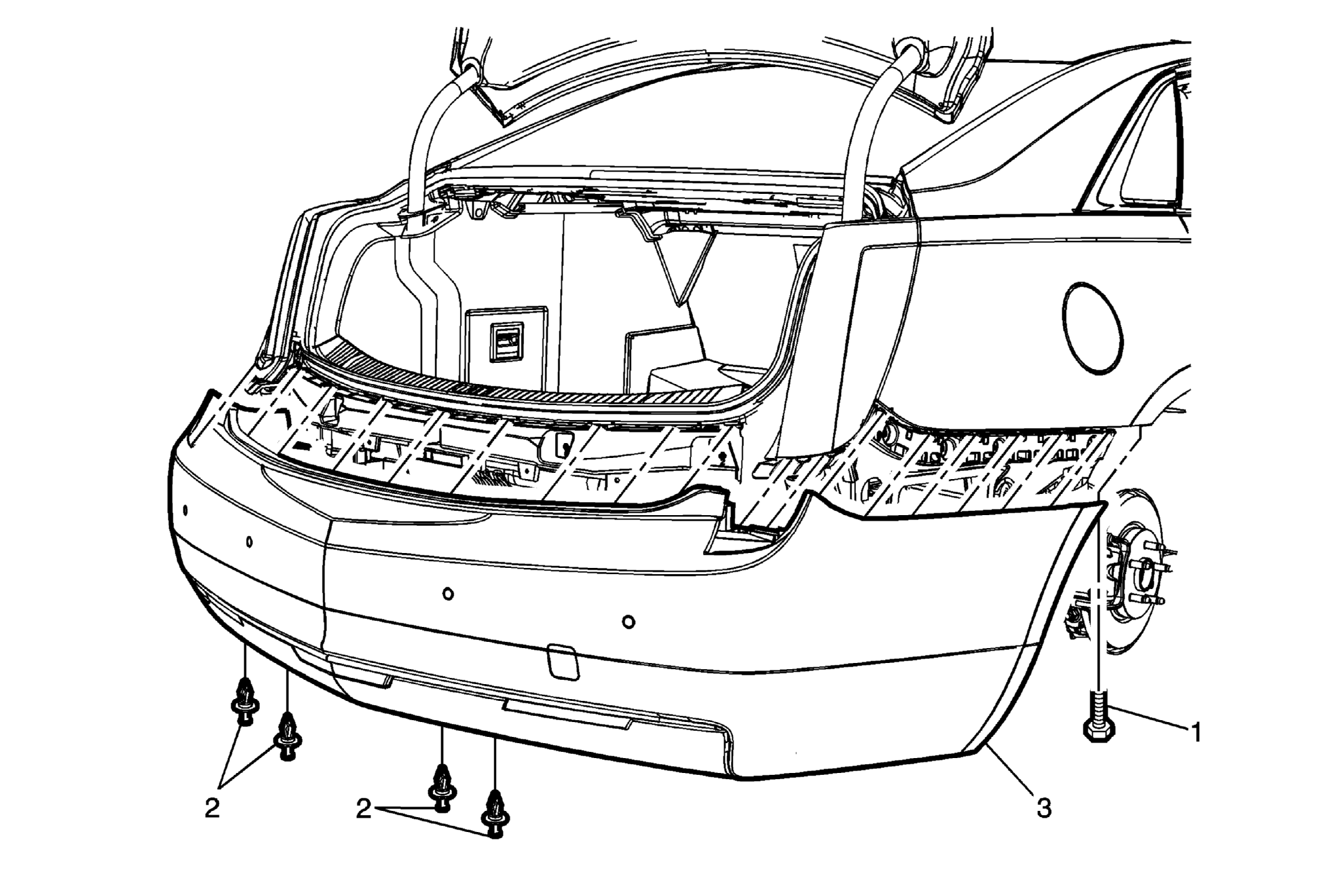

Fig 1: Rear Bumper Fascia & Mounting Components
GM2744217Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the left and right rear wheelhouse liner fasteners that attach the liners to the rear fascia. Refer to Rear Wheelhouse Liner Replacement .
1 Rear Bumper Fascia Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Rear Bumper Fascia Push-In Retainer (Qty: 4)
3 Rear Bumper Fascia

Procedure

  1. Carefully push a small nylon wedge between the fascia and the rear fascia brackets. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia brackets.
  2. Disconnect the electrical connectors.
  3. Transfer parts as needed.
