Rear Wheelhouse Liner Replacement

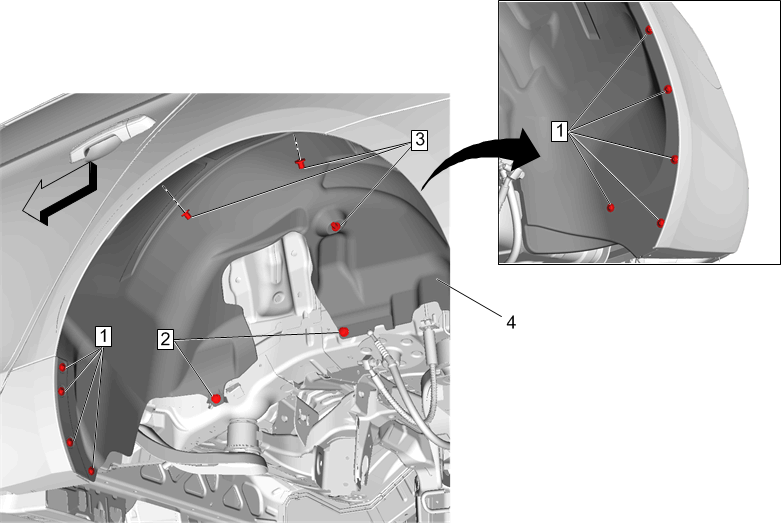

| Callout | Component Name |
|---|---|
| Preliminary Procedure Tire and Wheel Removal and Installation (With J64)Tire and Wheel Removal and Installation (With J55) |
|
| 1 | Rear Wheelhouse Liner Screw (Qty: 9)
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Wheelhouse Liner Retainer (Qty: 2) |
| 3 | Rear Wheelhouse Liner Plastic Nut (Qty: 3) Tighten 2.5 N.m (22 lb in) |
| 4 | Rear Wheelhouse Liner |
