Front Side Door Wiring Harness Replacement

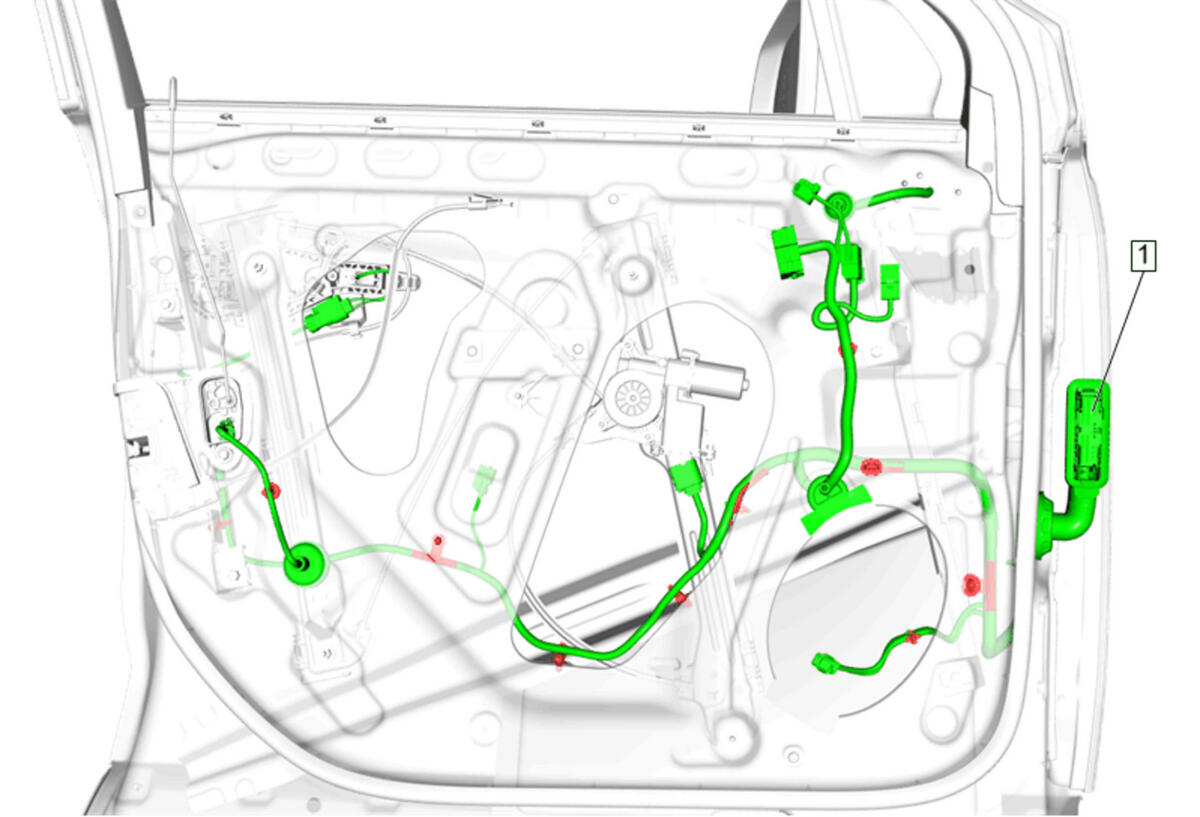

Fig 1: Front Side Door Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Front Side Door Pull Handle Bracket Replacement (Passenger Side)Front Side Door Pull Handle Bracket Replacement (Driver Side) Remove the front side door water deflector.
1	Front Side Door Wiring Harness Procedure Disconnect all electrical connectors. Enable the SIR System. SIR Disabling and Enabling NOTE: Typical wiring harness shown, individual harness may be different due to option content.

Callout

Component Name

WARNING:

Preliminary Procedures

Front Side Door Wiring Harness

Procedure

NOTE:

Typical wiring harness shown, individual harness may be different due to option content.
