Front Side Door Pull Handle Bracket Replacement (Driver Side)

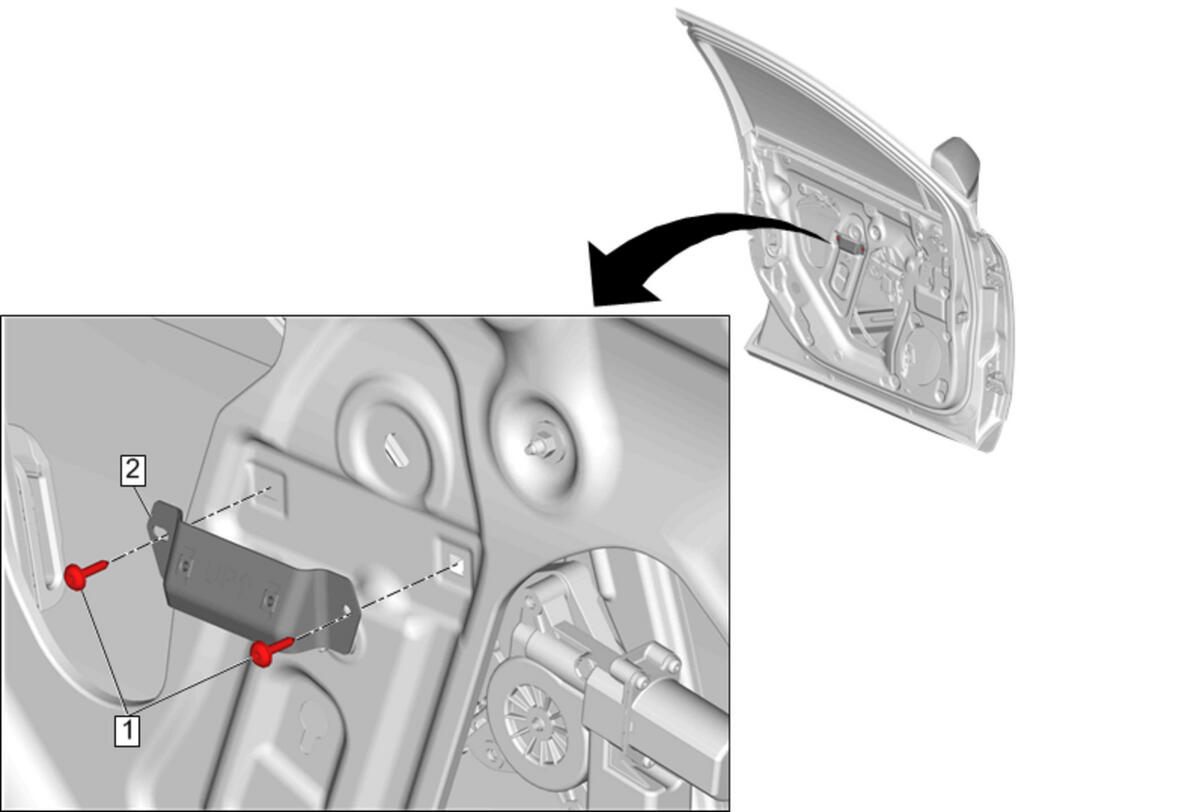

Fig 1: Front Side Door Pull Handle Bracket (Driver Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Side Door Trim Replacement
1	Front Side Door Armrest Bracket Fastener (Qty: 2) CAUTION: Refer to:Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Side Door Pull Handle Bracket Procedure  Reposition water deflector, as necessary.
