Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Lower)

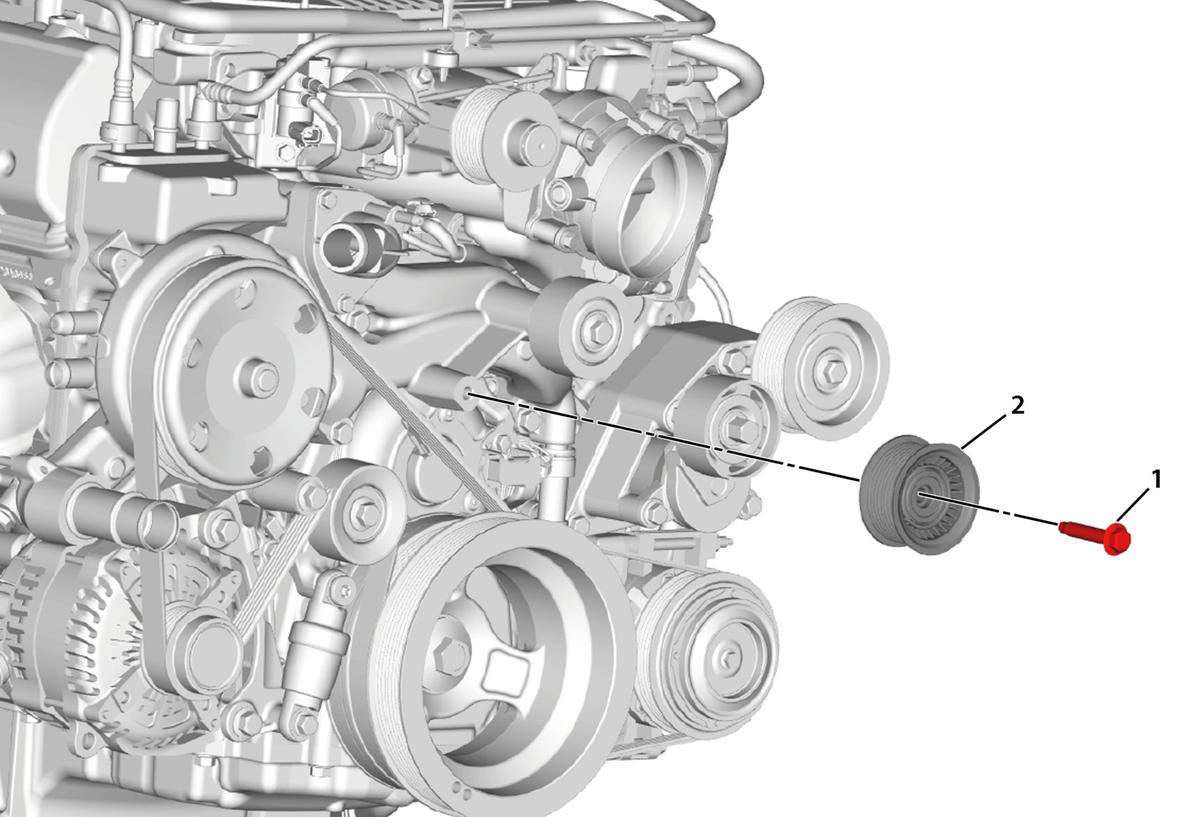

Fig 1: Supercharger Belt Idler Pulley (Engine Coolant Manifold - Lower)
GM4063611Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the supercharger belt. Refer to Supercharger Belt Replacement .
1 Supercharger Idler Pulley Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
58 N.m (43 lb ft)
2 Supercharger Idler Pulley
