Supercharger Belt Replacement

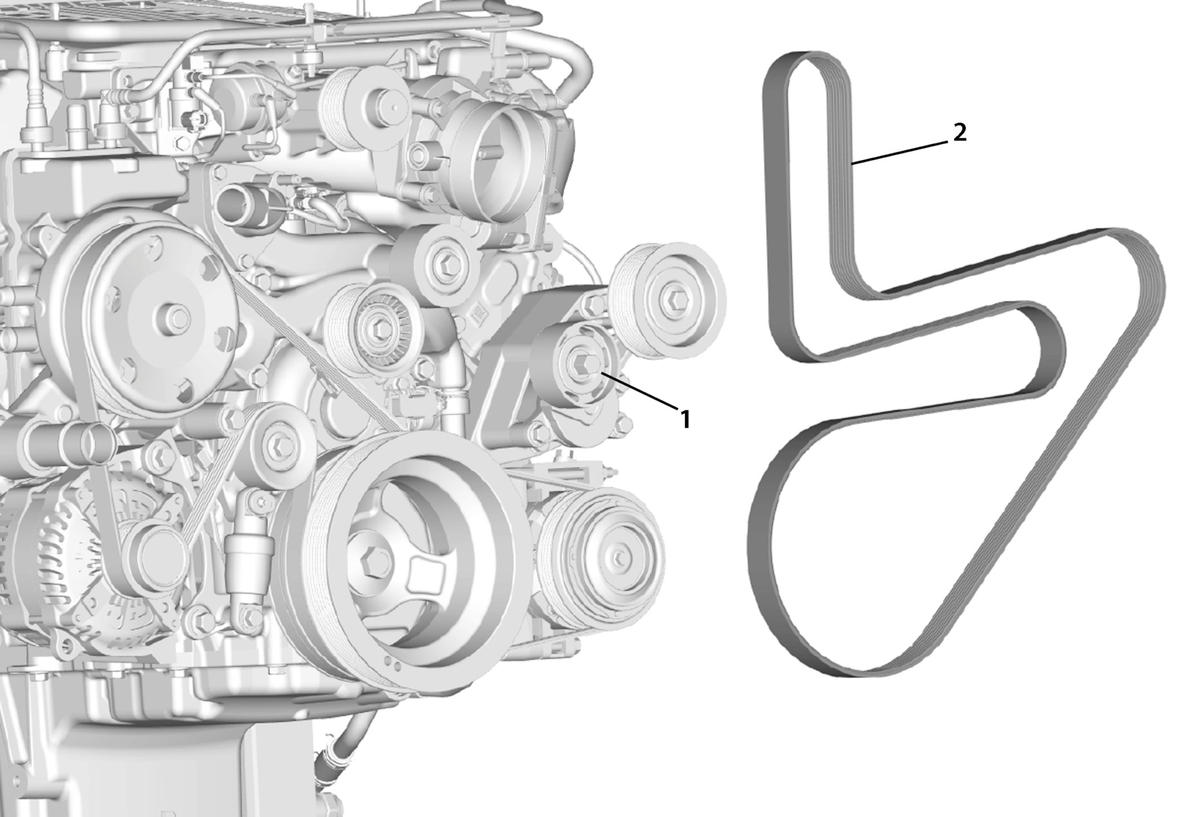

Fig 1: Supercharger Belt
GM4062968Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Intake Manifold Cover Replacement - Front
  2. Air Cleaner Outlet Duct Replacement
1 Supercharger Belt Tensioner

Procedure

  1. Use a 3/8 inch breaker bar to rotate the supercharger belt tensioner.
  2. Remove the supercharger belt from the pulleys and tensioner.
2 Supercharger Belt

Procedure

  1. Clean and inspect the supercharger belt surfaces of all the pulleys.
  2. Inspect the supercharger belt for correct alignment.
