Supercharger Air Outlet Pressure Sensor Replacement

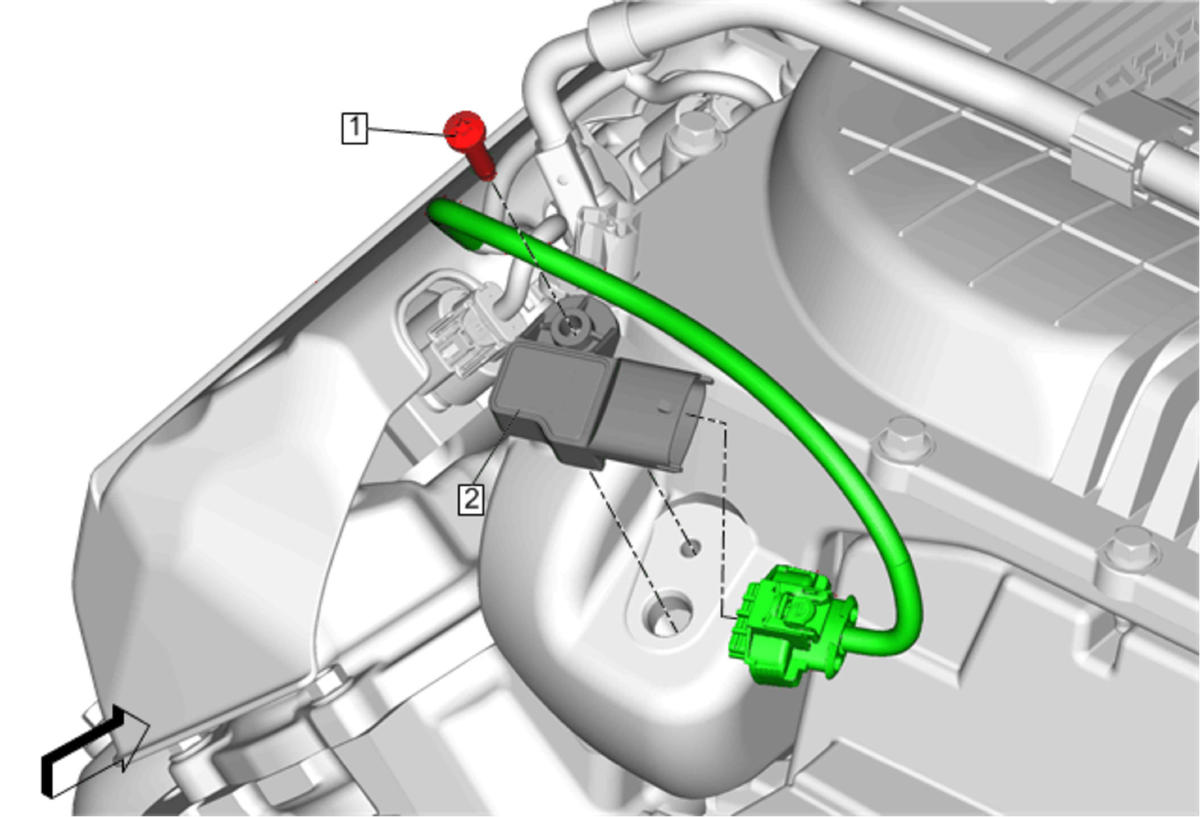

| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Manifold Cover Insulator Replacement |
|
| 1 | Super Charger Air Pressure Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Super Charger Air Outlet Pressure Sensor
NOTE:
Always install the NEW O-ring provided with the super charger pressure sensor. Procedure Disconnect the super charger pressure sensor harness connector. |
