Intake Manifold Cover Insulator Replacement

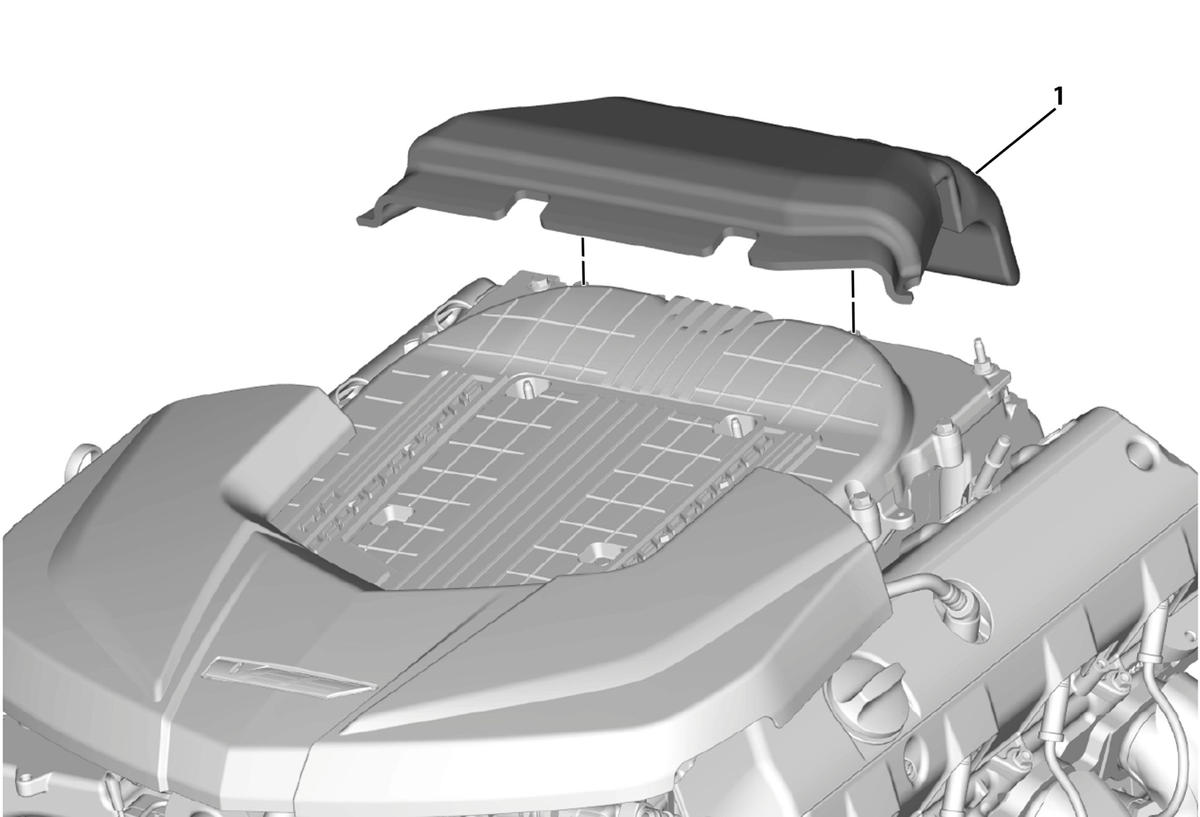

Fig 1: Intake Manifold Cover Insulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Intake Manifold Insulator Procedure  Grasp the intake manifold insulator and lift up disengaging the grommets from the studs.
