Supercharger Air Inlet Pressure Sensor Replacement

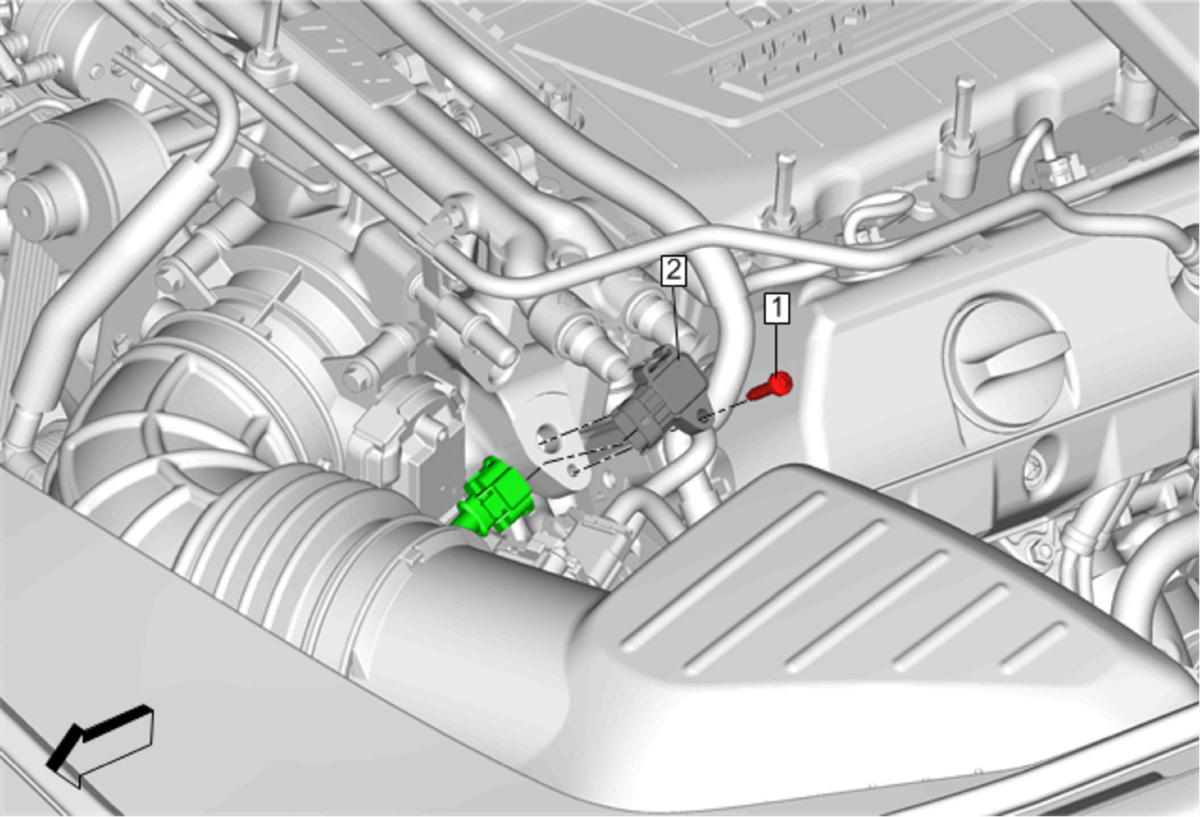

Fig 1: Supercharger Air Inlet Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement - Front Evaporative Emission Canister Purge Solenoid Valve Replacement
1	Super Charger Air Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Super Charger Air Inlet Pressure Sensor NOTE: Always install the NEW O-ring provided with the super charger pressure sensor. Procedure Disconnect the super charger pressure sensor harness connector.

Callout

Component Name

Preliminary Procedure

Super Charger Air Pressure Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Super Charger Air Inlet Pressure Sensor

NOTE:

Always install the NEW O-ring provided with the super charger pressure sensor.

Procedure
Disconnect the super charger pressure sensor harness connector.
