Evaporative Emission Canister Purge Solenoid Valve Replacement

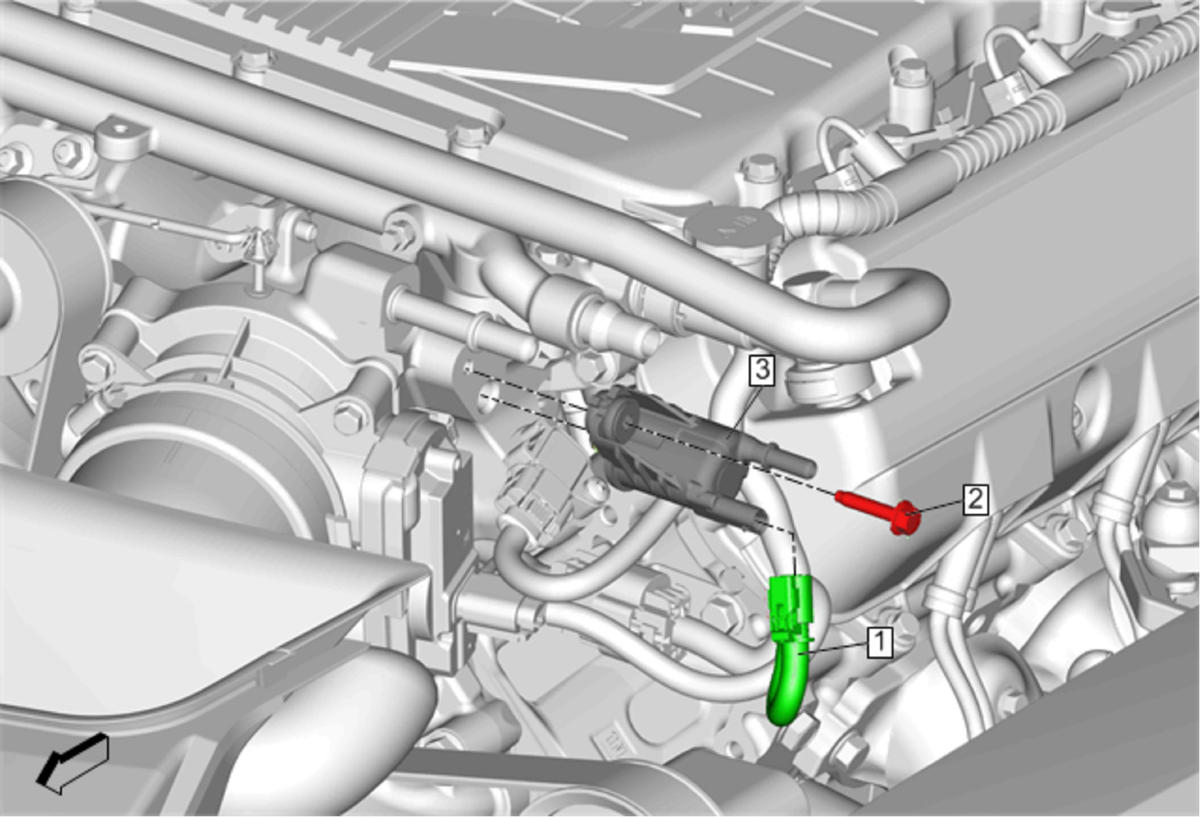

Fig 1: Evaporative Emission Canister Purge Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Disconnect Evaporative Emission Canister Purge Pipe Replacement  at Evaporative Emission Canister Purge Solenoid Valve
1	Electrical Connector
2	Evaporative Emission Canister Purge Solenoid Valve Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
3	Evaporative Emission Canister Purge Solenoid Valve Procedure  Install a NEW O-ring seal.
