Installation Procedure

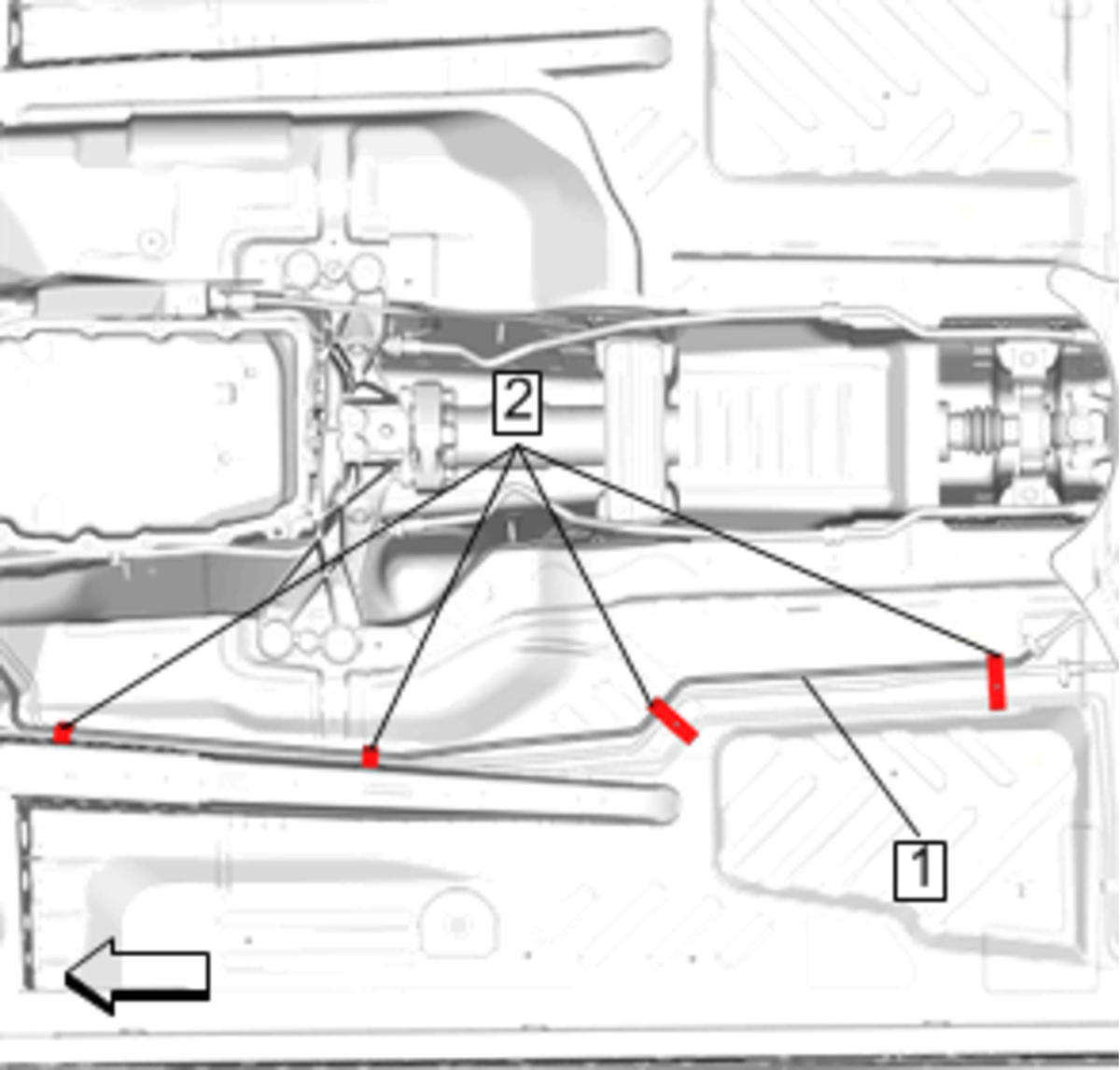

    Fig 1: Evaporative Emission Hose
    GM4084956Courtesy of GENERAL MOTORS COMPANY
  1. Install the evaporative emission hose (1) to the vehicle.
  2. Connect the evaporative emission hose (1) and install to the retainers (2). Plastic Collar Quick Connect Fitting Service
  3. Installthe right side catalytic converter and exhaust. Exhaust System Replacement (LF3, LGX)
  4. Install the front body exhaust heat shield right side. Front Body Exhaust Heat Shield Replacement (Right)Front Body Exhaust Heat Shield Replacement (Left)
  5. Install the underbody front air deflector right side. Underbody Front Air Deflector Replacement - Right Side
  6. Lower the vehicle.

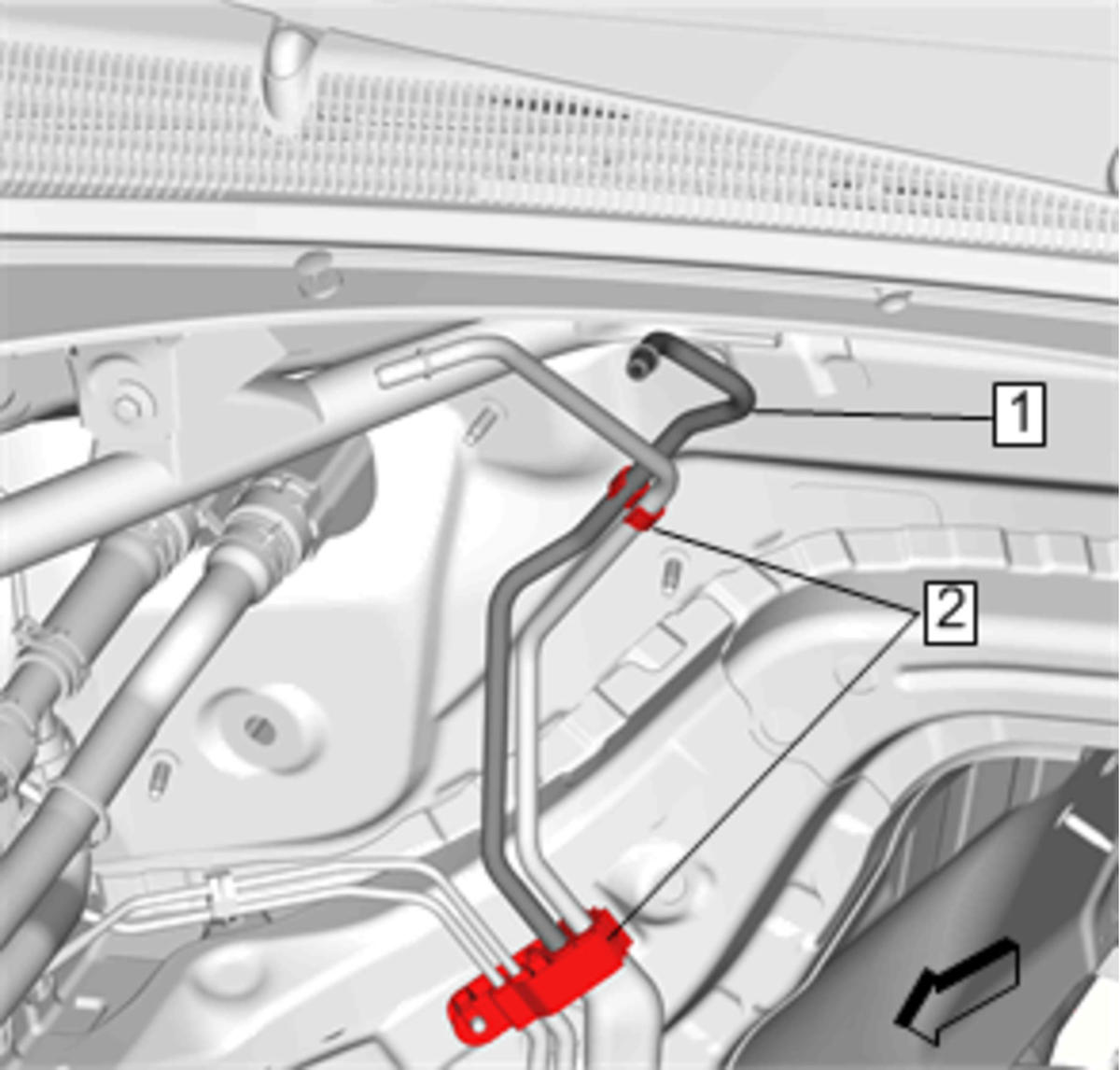

    7. Fig 2: Evaporative Emission Hose And Retainers
    GM4084929Courtesy of GENERAL MOTORS COMPANY
  7. Install the evaporative emission hose (1) to the and retainers (2). Plastic Collar Quick Connect Fitting Service
  8. Install the evaporative emission canister purge tube. Evaporative Emission Canister Purge Tube Replacement
