Evaporative Emission Canister Purge Tube Replacement

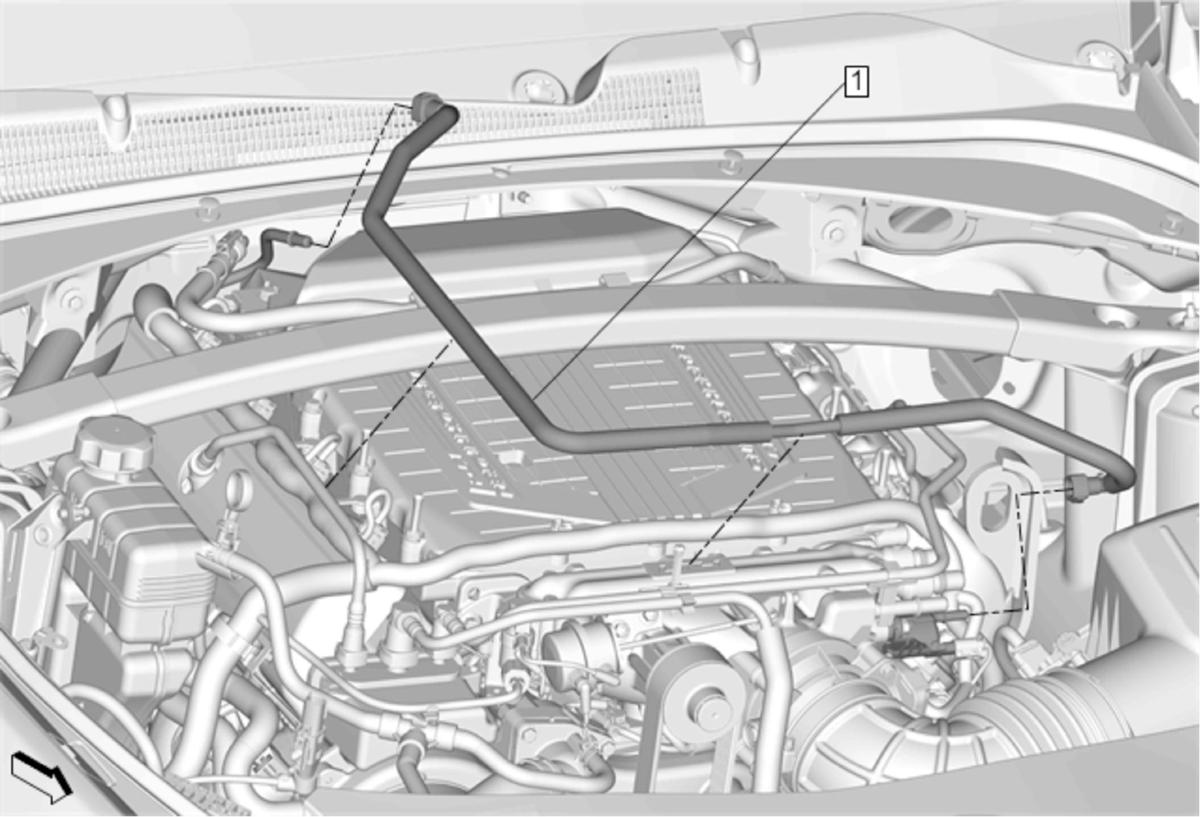

| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Manifold Cover Replacement - Front |
|
| 1 | Evaporative Emission Canister Purge Tube Procedure Disconnect Evaporative Emission Canister Purge Tube at Evaporative Emission Pipe and Evaporative Emission Canister Purge Solenoid Valve - Plastic Collar Quick Connect Fitting Service |
