Rear Side Door Armrest Cover Trim Replacement

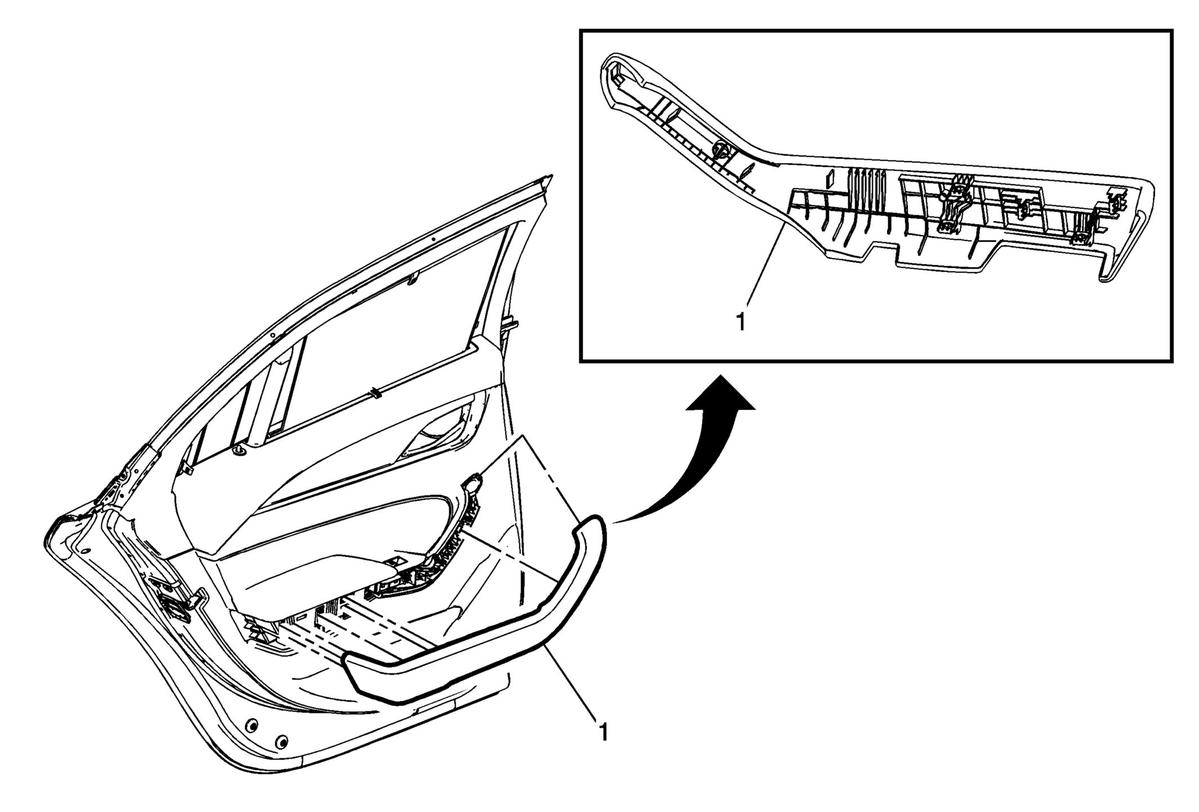

Fig 1: Rear Side Door Armrest Cover Trim
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Rear Side Door Armrest Cover Trim Assembly
Procedure
Using a flat-bladed tool, release the rear side door armrest cover trim from the rear side door trim.
