Manual Shift Auxiliary Position Switch Replacement - Steering Wheel

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

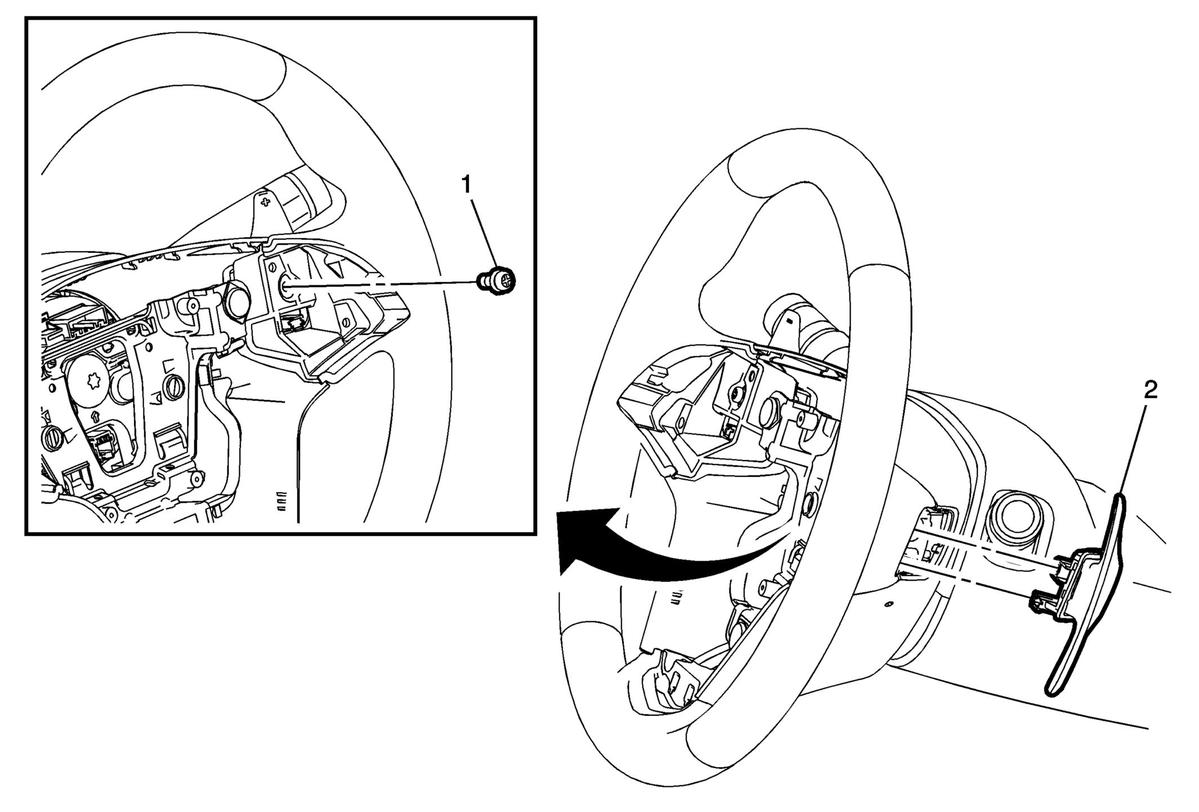

Fig 1: Manual Shift Auxiliary Position Switch - Steering Wheel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Spoke Cover Replacement
1	Automatic Transmission Manual Shift Auxiliary Position Switch Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Automatic Transmission Manual Shift Auxiliary Position Switch Procedure Disconnect the electrical connector. Ensure the steering wheel manual shift auxiliary position switch is properly seated on the steering wheel during installation.

Callout

Component Name

Preliminary Procedure
Steering Wheel Spoke Cover Replacement

Automatic Transmission Manual Shift Auxiliary Position Switch Bolt

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Automatic Transmission Manual Shift Auxiliary Position Switch

Procedure

Disconnect the electrical connector.
Ensure the steering wheel manual shift auxiliary position switch is properly seated on the steering wheel during installation.
