Steering Wheel Spoke Cover Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

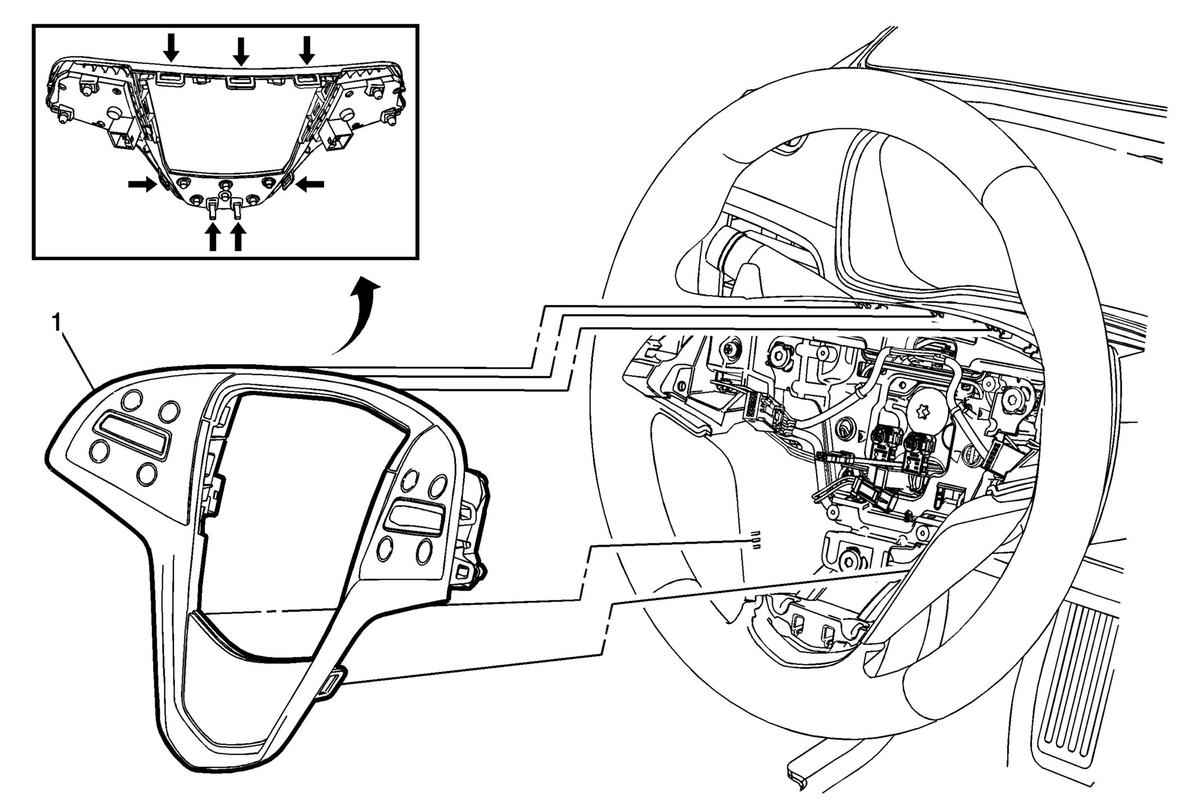

Fig 1: Steering Wheel Spoke Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
1	Steering Wheel Spoke Cover Procedure Use the appropriate tool to release the retaining tabs on the cover. Disconnect the electrical connections. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .

Steering Wheel Spoke Cover

Procedure

Use the appropriate tool to release the retaining tabs on the cover.
Disconnect the electrical connections.
Transfer components as necessary.
