Front Bumper Fascia Replacement (CTS-V)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

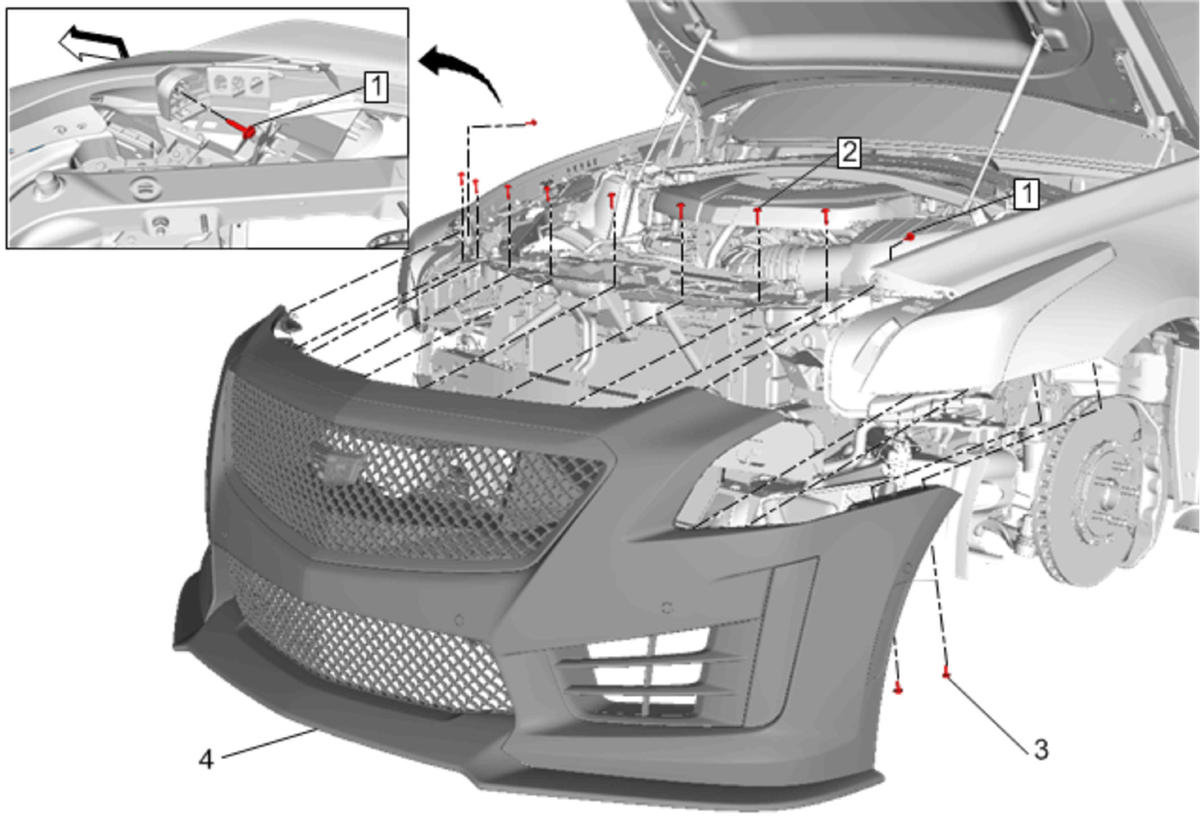

Fig 1: Front Bumper Fascia (CTS-V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Compartment Front Sight Shield Replacement . Front Wheelhouse Liner Replacement (V-Series) . Front Bumper Fascia Air Deflector Replacement - Center (CTS-V) .
1	Front Bumper Fascia Outer Reinforcement Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Bumper Fascia Bolt [8x] Tighten 4 N.m (35 lb in)
3	Front Bumper Fascia Outer Bracket Bolt [4x] Tighten 9 N.m (80 lb in)
4	Front Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the headlamp bracket. Insert a small flat-bladed tool into the fascia slot and depress the snaps (2 on each side) one at a time and pull on the fascia at the same time to gradually remove the fascia from the headlamp bracket. Disconnect the electrical connector. Transfer components as necessary.
