Front Wheelhouse Liner Replacement (V-Series)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

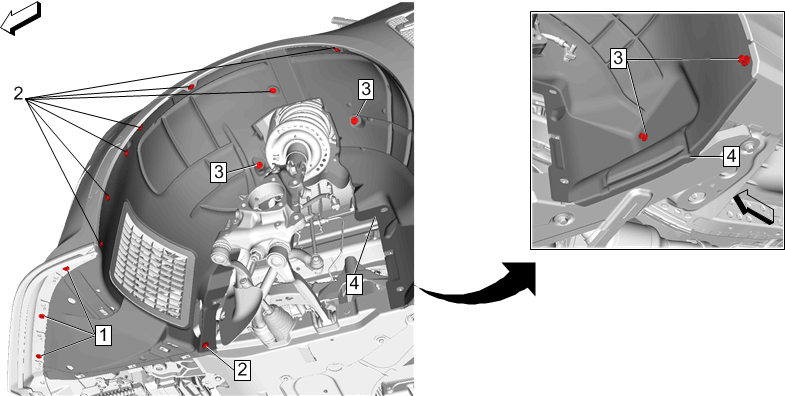

Fig 1: Front Wheelhouse Liner (V-Series)
GM4364243Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Engine Lower Front Splash Shield Replacement (V-Series)
  2. Front Tire Front Air Deflector Replacement
1 Front Wheelhouse Liner Bolt [3x]
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Front Wheelhouse Liner Screw [8x]
Tighten
2.5 N.m (22 lb in)
3 Front Wheelhouse Liner Retainer [4x]
4 Front Wheelhouse Liner
