Front Bumper Fascia Replacement (CTS)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

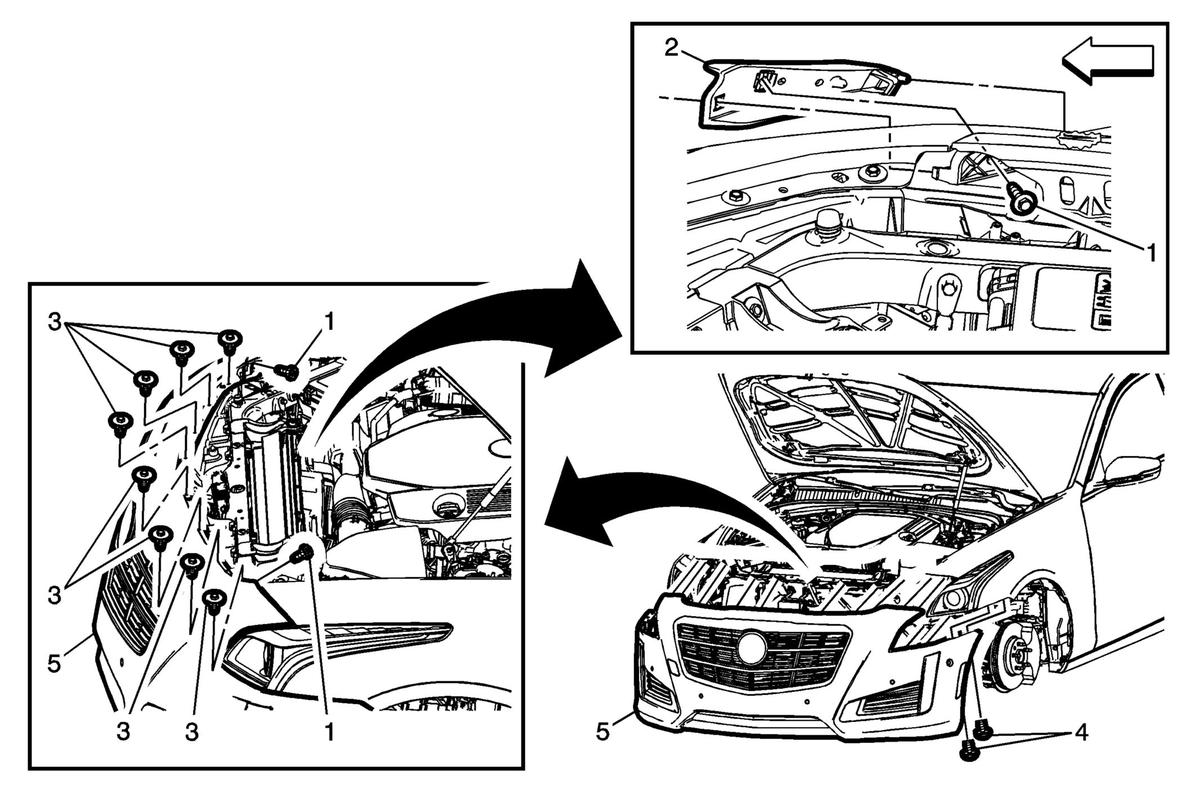

Fig 1: Front Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement . Remove the front wheelhouse liners. Refer to Front Wheelhouse Liner Replacement (V-Series) . Remove the front bumper fascia air deflector center. Refer to Front Bumper Fascia Air Deflector Replacement - Center .
1	Front Bumper Fascia Reinforcement Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Front Bumper Fascia Reinforcement (Qty 2)
3	Front Bumper Fascia Upper Bolt (Qty: 8) Tighten 4 N.m (35 lb in)
4	Front Bumper Fascia Outer Bracket Bolt (Qty: 4) Tighten 9 N.m (80 lb in)
5	Front Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the headlamp bracket. Insert a small flat-bladed tool into the fascia slot and depress the snaps (2 on each side) one at a time and pull on the fascia at the same time to gradually remove the fascia from the headlamp bracket. Disconnect any electrical connectors. Transfer components as necessary.
