Engine Lower Front Splash Shield Replacement (V-Series)
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

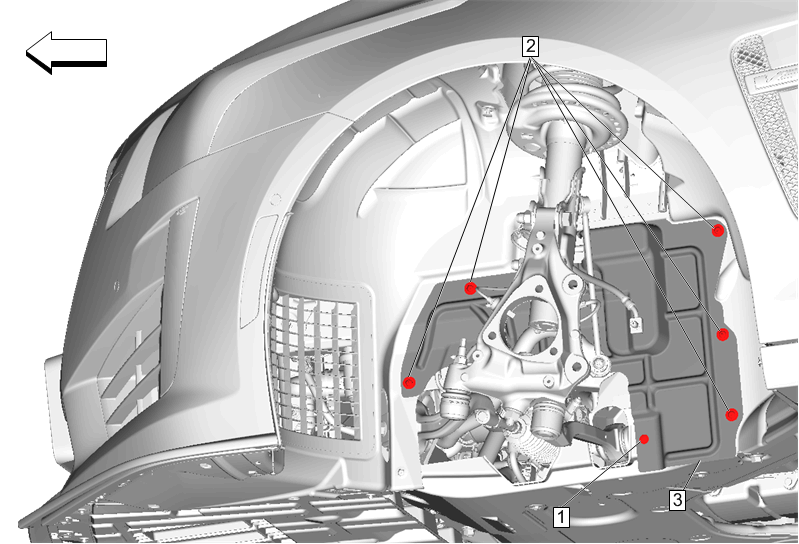

| Callout | Component Name |
|---|---|
| Preliminary Procedure Tire and Wheel Removal and Installation (October 4th 2015 and Earlier)Tire and Wheel Removal and Installation (October 5th 2015 and Later) . |
|
| 1 | Engine Lower Front Splash Shield Retainer |
| 2 | Engine Lower Front Splash Shield Screw [5x]
CAUTION:
Refer to Fastener Caution
. Tighten 2.5 N.m (22 lb in) |
| 3 | Engine Lower Front Splash Shield |
