Body Side Rear Window Garnish Molding Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

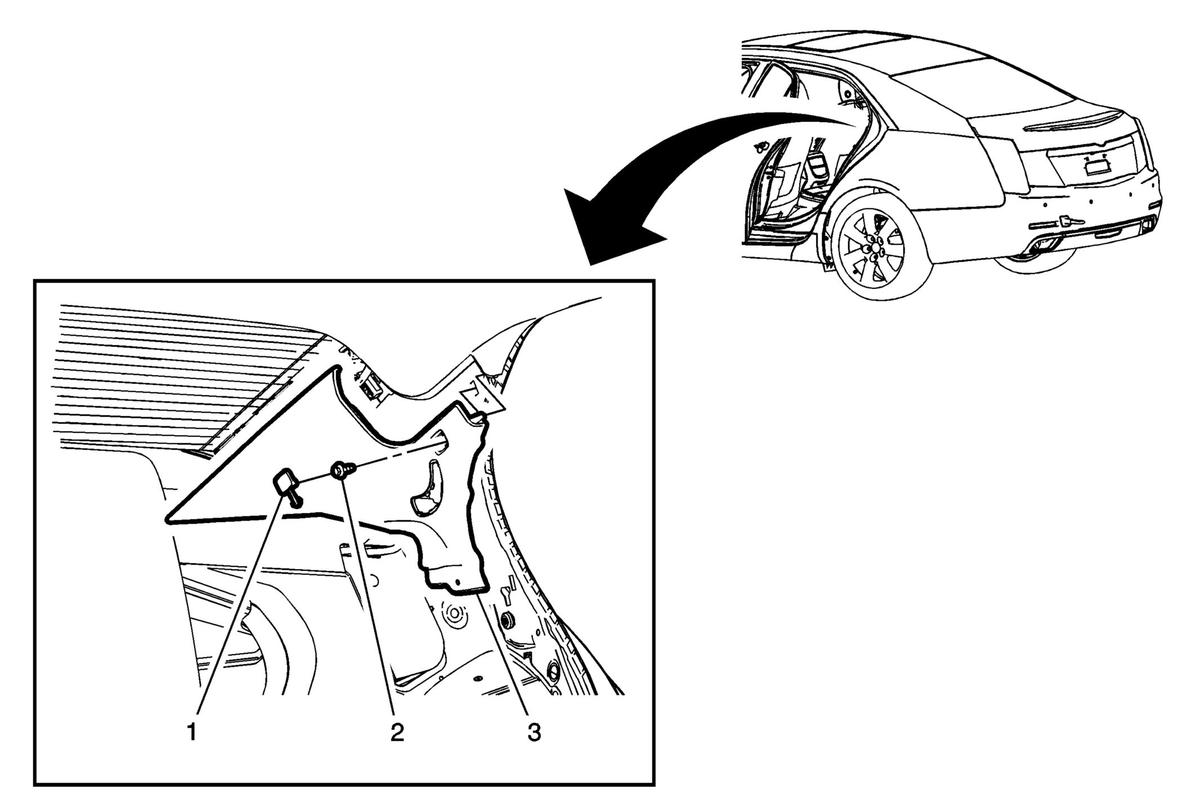

Fig 1: Body Side Rear Window Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door sill garnish molding. Refer to Rear Side Door Sill Garnish Molding Replacement . Disable the SIR system. Refer to SIR Disabling And Enabling .
1	Inflatable Restraint Airbag Plate
2	Body Side Rear Window Garnish Molding Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Body Side Rear Window Garnish Molding Assembly Procedure Remove the seat belt anchor bolt. Disconnect the seat belt through the slot in the escutcheon opening.
