Turbocharger Heat Shield Replacement (LF3 Bank 2)

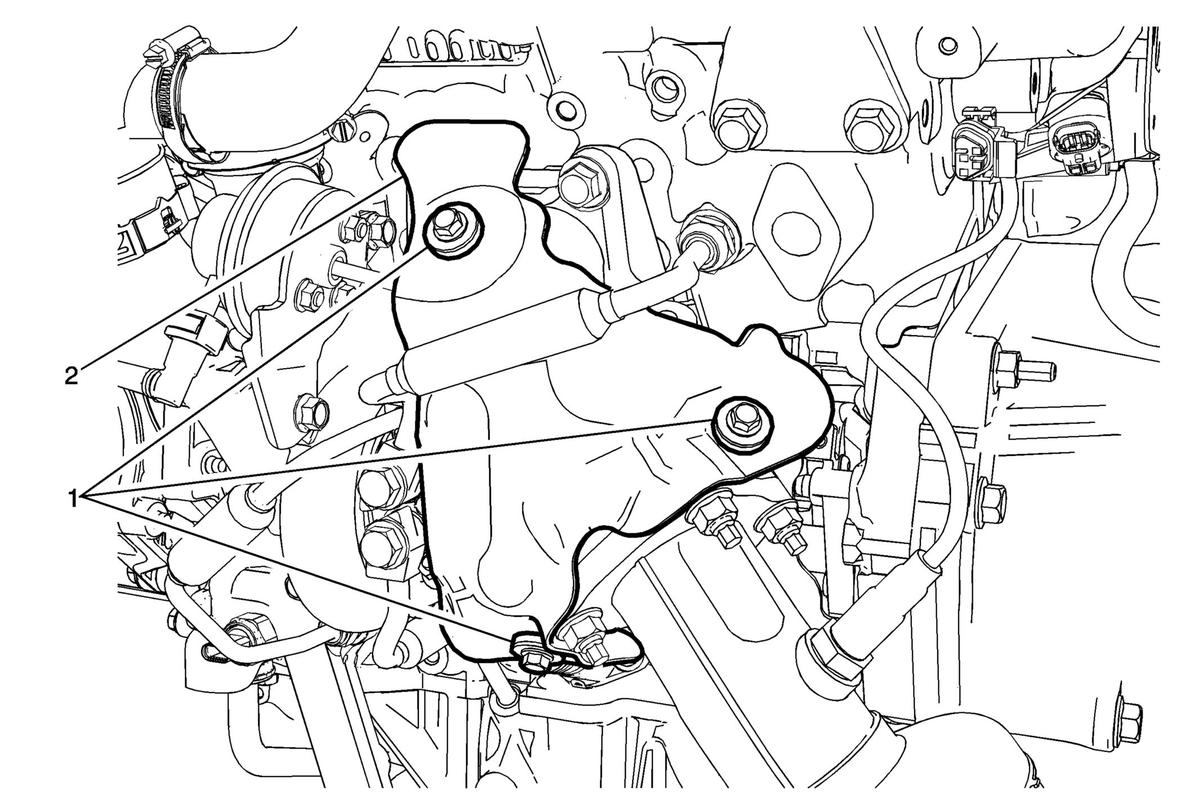

Fig 1: Turbocharger Heat Shield (LF3 Bank 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Mid Intermediate Steering Shaft Replacement (RWD With LF3, LGX, LT4, LTG) Turbocharger Coolant Return Pipe Replacement (LF3 - Bank 2)Turbocharger Coolant Return Pipe Replacement (LF3 - Bank 1)
1	Turbocharger Heat Shield Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Turbocharger Heat Shield

Callout

Component Name

Preliminary Procedure

Turbocharger Heat Shield Fasteners (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Turbocharger Heat Shield
