Turbocharger Coolant Return Pipe Replacement (LF3 - Bank 2)

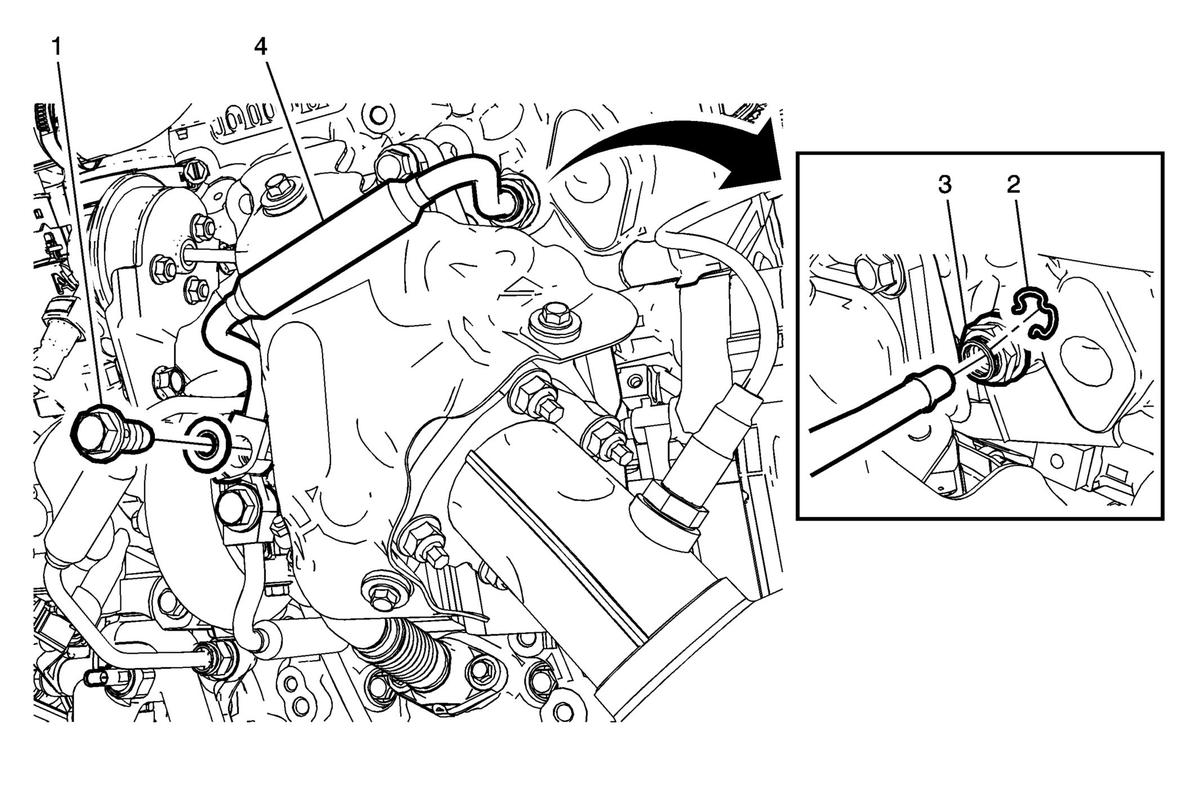

Fig 1: Turbocharger Coolant Return Pipe (LF4 - Bank 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716) .
1	Turbocharger Coolant Return Pipe Fastener CAUTION: Refer to Fastener Caution . Procedure Clean the gasket surfaces. Install a NEW gaskets. Tighten 35 N.m (26 lb ft)
2	Turbocharger Coolant Return Pipe Retaining Clip
3	Turbocharger Coolant Return Pipe Jiffy-Tite® Fastener Procedure Remove and DISCARD the Jiffy-Tite® fastener Install a NEW Jiffy-Tite® fastener Tighten 35 N.m (26 lb ft)
4	Turbocharger Coolant Return Pipe
