Cargo Tie Down Loop Replacement

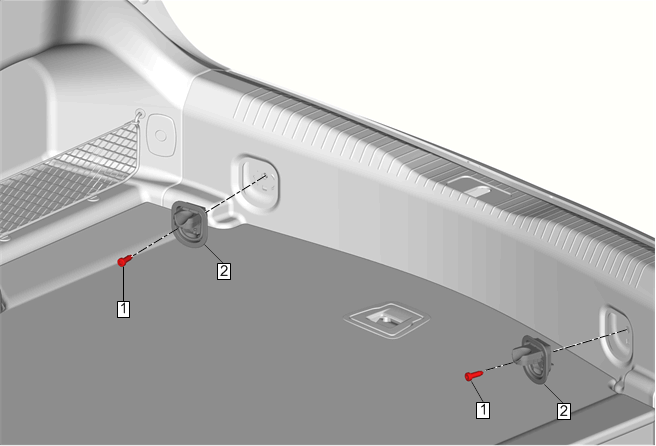

Fig 1: Cargo Tie Down Loop

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Cargo Tie Down Loop Fastener [2x] CAUTION: Refer to Fastener Caution . Procedure Use a small flat-bladed tool to open cargo tie down loop bolt cap to gain access to cargo tie down loop fastener. Tighten 20 N.m (15 lb ft)
2	Cargo Tie Down Loop Assembly [2x]
