Instrument Panel Lower Trim Plate Applique Replacement - Right Side

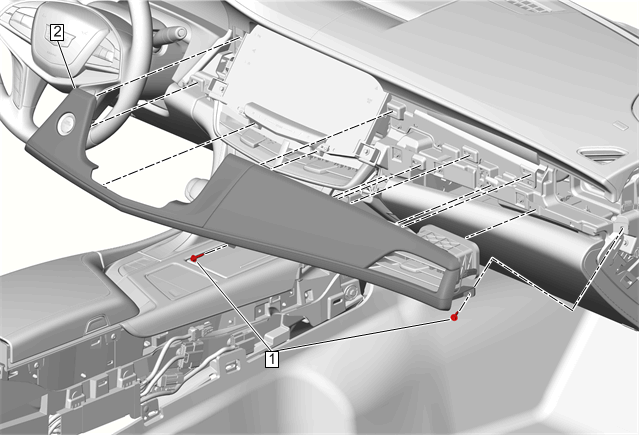

Fig 1: Instrument Panel Lower Trim Plate Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Outer Trim Cover Replacement Front Floor Console Extension Panel Replacement - Right Side
1	Instrument Panel Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Lower Trim Plate Applique - Right Side Procedure Use a flat bladed plastic trim tool. Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Instrument Panel Bolt [2x]

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Instrument Panel Lower Trim Plate Applique - Right Side

Procedure
