Front Floor Console Extension Panel Replacement - Right Side

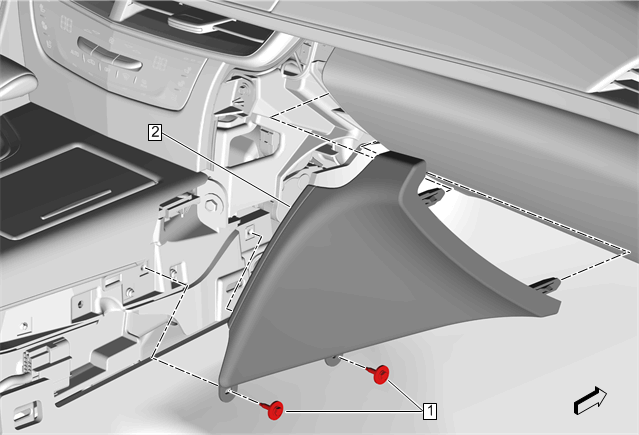

Fig 1: Front Floor Console Extension Panel - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Floor Lower Console Replacement (Right Side)
1	Front Floor Console Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Extension Panel - Right Procedure  Use a flat bladed plastic trim tool.
