Front Floor Lower Console Replacement (Right Side)

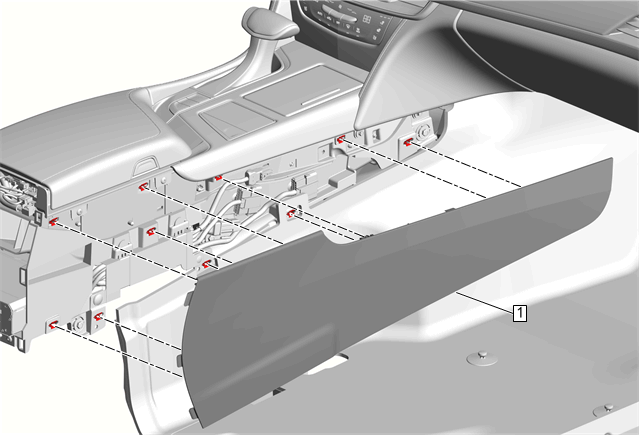

Fig 1: Front Floor Lower Console (Right Side)
GM4246843Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Rear Trim Panel Replacement
1 Front Floor Lower Console - Right Side

Procedure

  1. Reposition the seat as necessary to access the fasteners.
  2. Use a plastic trim tool if necessary.
