Headlamp Replacement

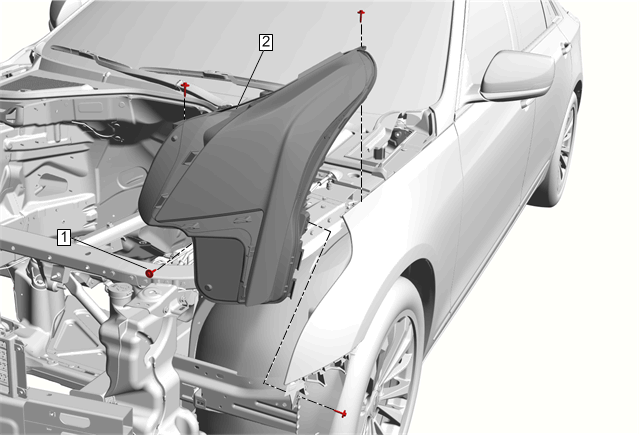

Fig 1: Headlamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (Without UV3)Front Bumper Fascia Replacement (With UV3)
1	Headlamp Screw [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Procedure Disconnect the electrical connector. Disconnect and reposition harness as necessary. Headlamp Aiming

Callout

Component Name

Headlamp Screw [4x]

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Headlamp

Procedure
