Turbocharger Wastegate Regulator Solenoid Valve Replacement (LF3)

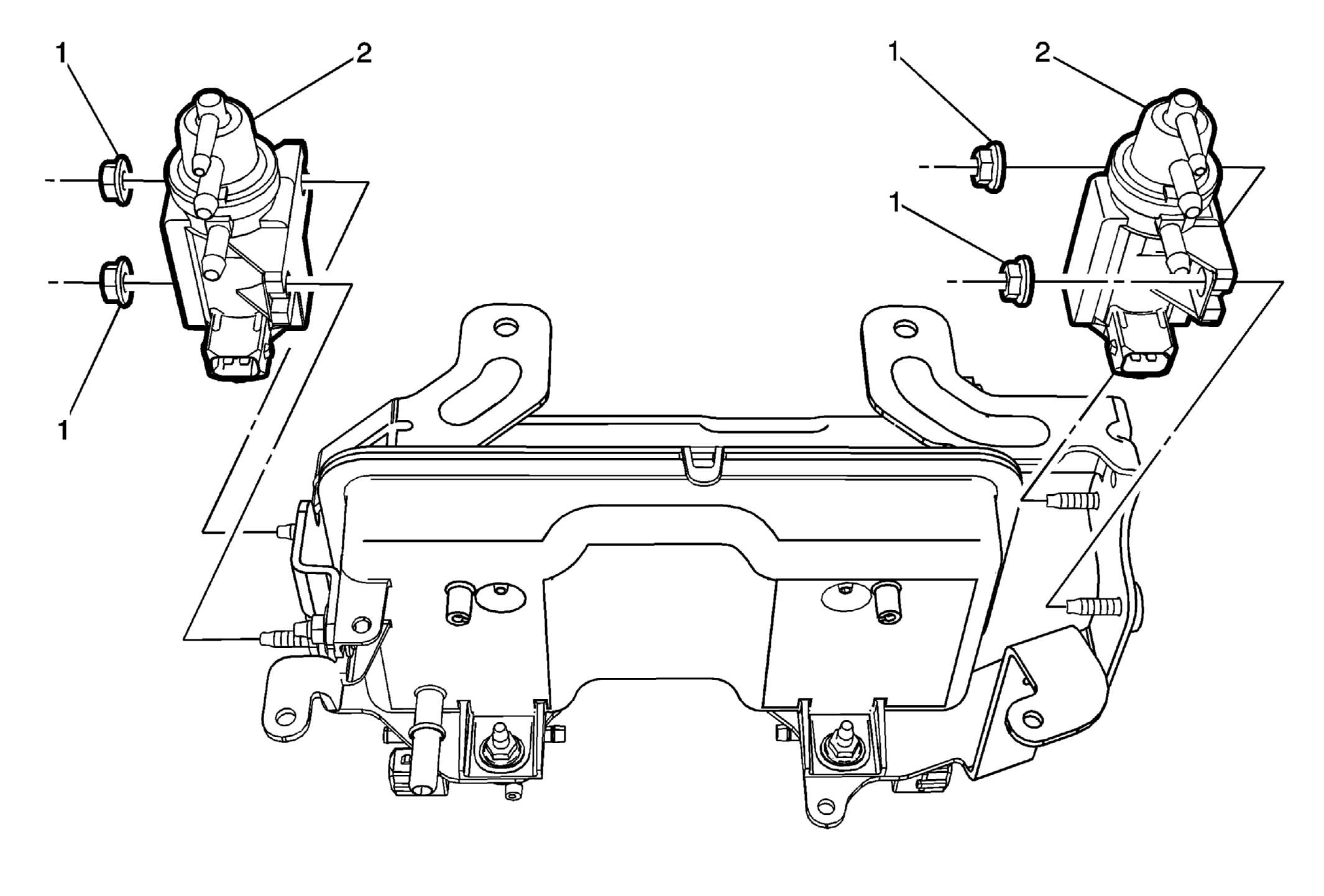

Fig 1: Turbocharger Wastegate Regulator Solenoid Valve (LF3)
GM3290761Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
CAUTION:

Refer to Solenoid Valve Caution .

Preliminary Procedures

  1. Remove the turbocharger wastegate actuator vacuum tank. Refer to Turbocharger Wastegate Actuator Vacuum Tank Replacement (LF3) .
  2. Remove the turbocharger wastegate actuator vacuum source tube. Refer to Turbocharger Wastegate Actuator Vacuum Source Tube Replacement (Left Solenoid Bank) Turbocharger Wastegate Actuator Vacuum Source Tube Replacement (Right Solenoid Bank) .
1 Turbocharger Wastegate Regulator Solenoid Valve Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Turbocharger Wastegate Regulator Solenoid Valve (Qty: 2)
