Turbocharger Wastegate Actuator Vacuum Source Tube Replacement (Left Solenoid Bank)

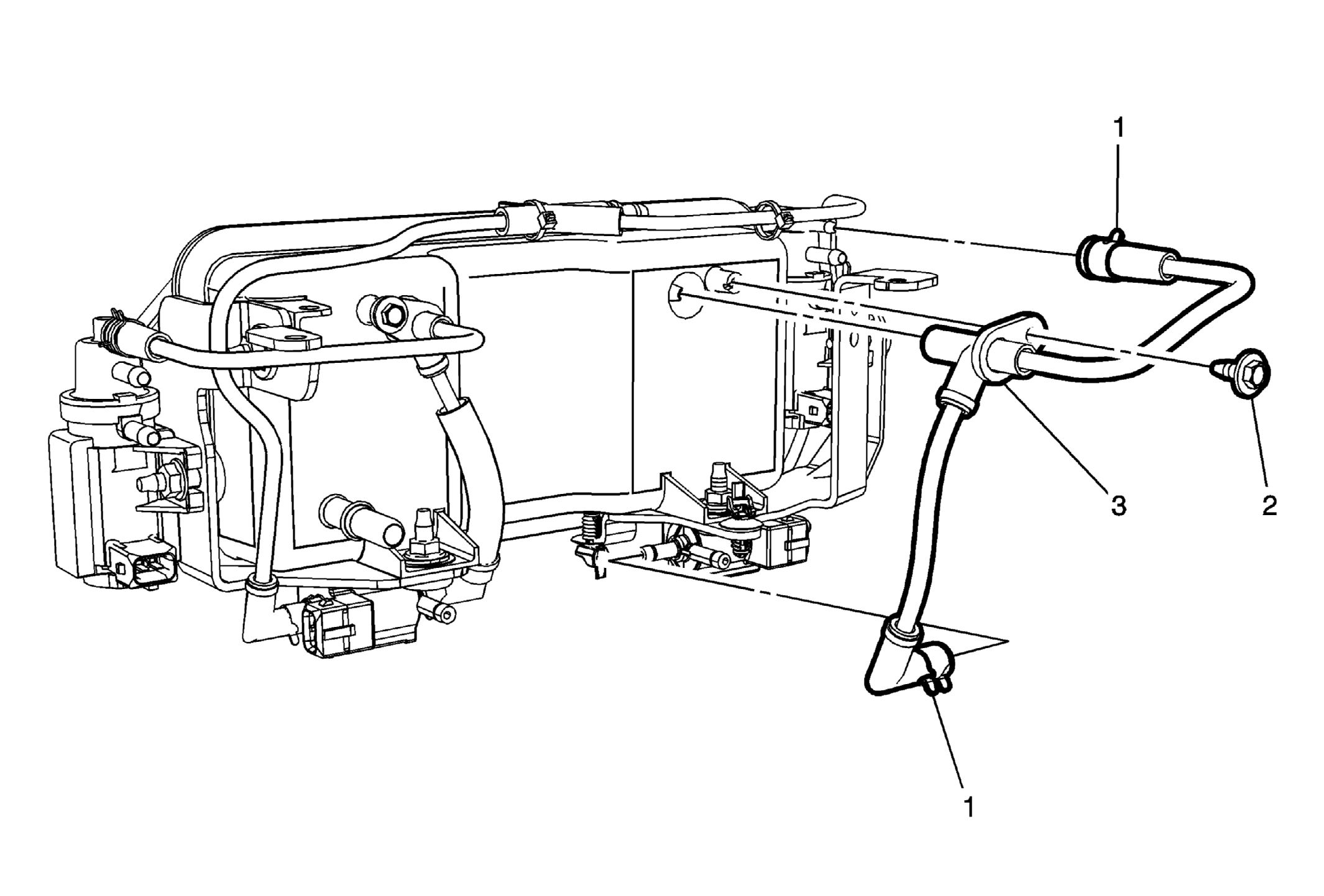

Fig 1: Turbocharger Wastegate Actuator Vacuum Source Tube (Left Solenoid Bank)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Refer to Solenoid Valve Caution . Preliminary Procedures Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
1	Turbocharger Wastegate Actuator Vacuum Source Tube Clamps (Qty: 2)
2	Turbocharger Wastegate Actuator Vacuum Source Tube Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
3	Turbocharger Wastegate Actuator Vacuum Source Tube
