Installation Procedure

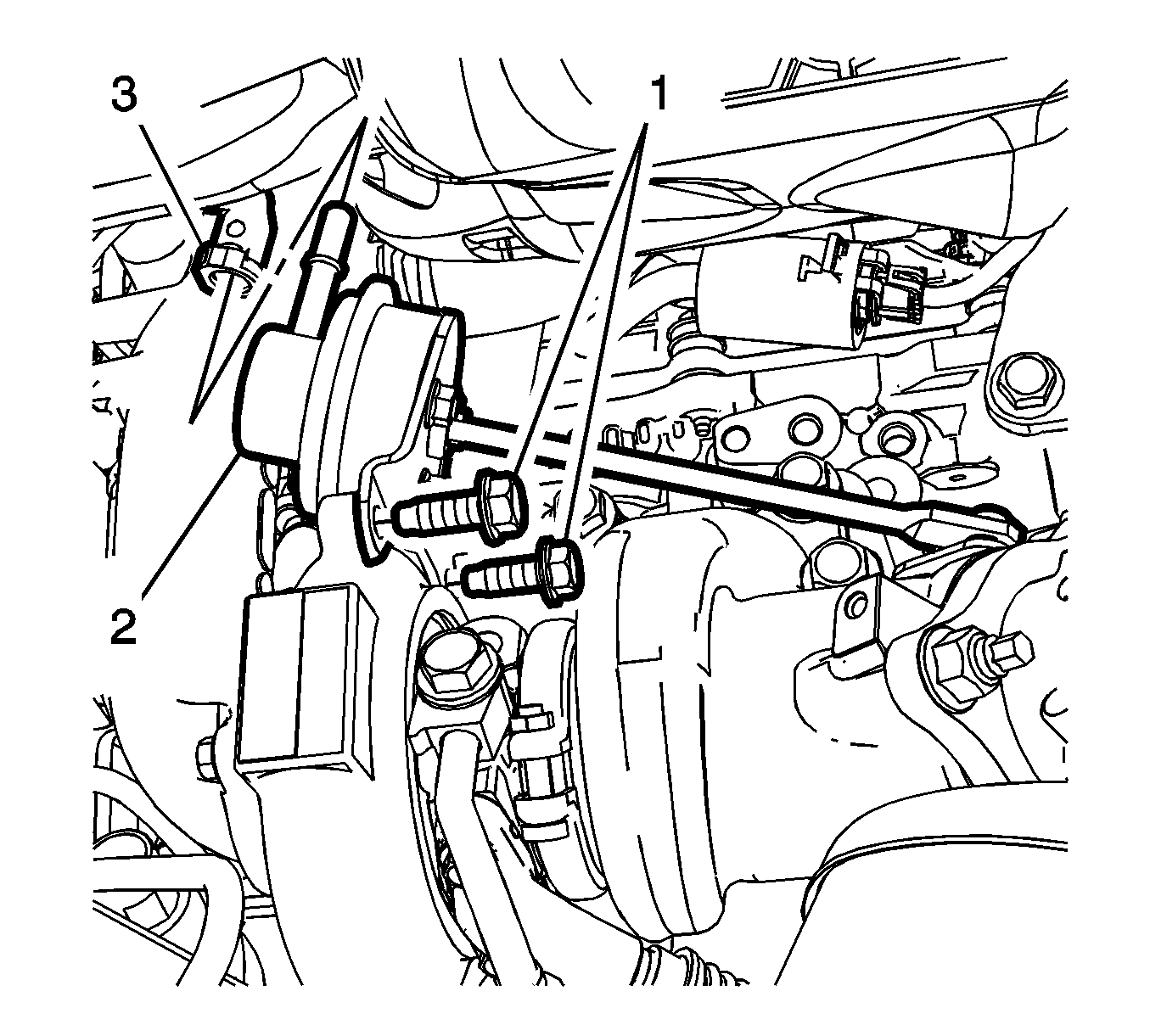

    Fig 1: Turbocharger Wastegate Actuator
    GM3339761Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Position the turbocharger wastegate actuator (2) in place then hand start the fasteners (1).

    Tighten the wastegate fasteners (1) to 25 N.m (18 lb ft).

    2. NOTE:

    Ensure the wastegate vacuum connection is fully seated and secure. A poor connection can result in a DTC and lead to misdiagnosis.

  2. Connect the charge air bypass valve vacuum tube (3) to the turbocharger wastegate actuator. Refer to Plastic Collar Quick Connect Fitting Service .
    3. Fig 2: Turbocharger Wastegate Actuator Arm Retainer
    GM3339414Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the actuator arm retainer is installed as previously noted.

  3. Install the turbocharger wastegate actuator arm (2) then install its retainer (1) to securing the actuator arm.
  4. Install the turbocharger heat shield. Refer to Turbocharger Heat Shield Replacement (Front)Turbocharger Heat Shield Replacement (Rear) .
