Turbocharger Heat Shield Replacement (Front)

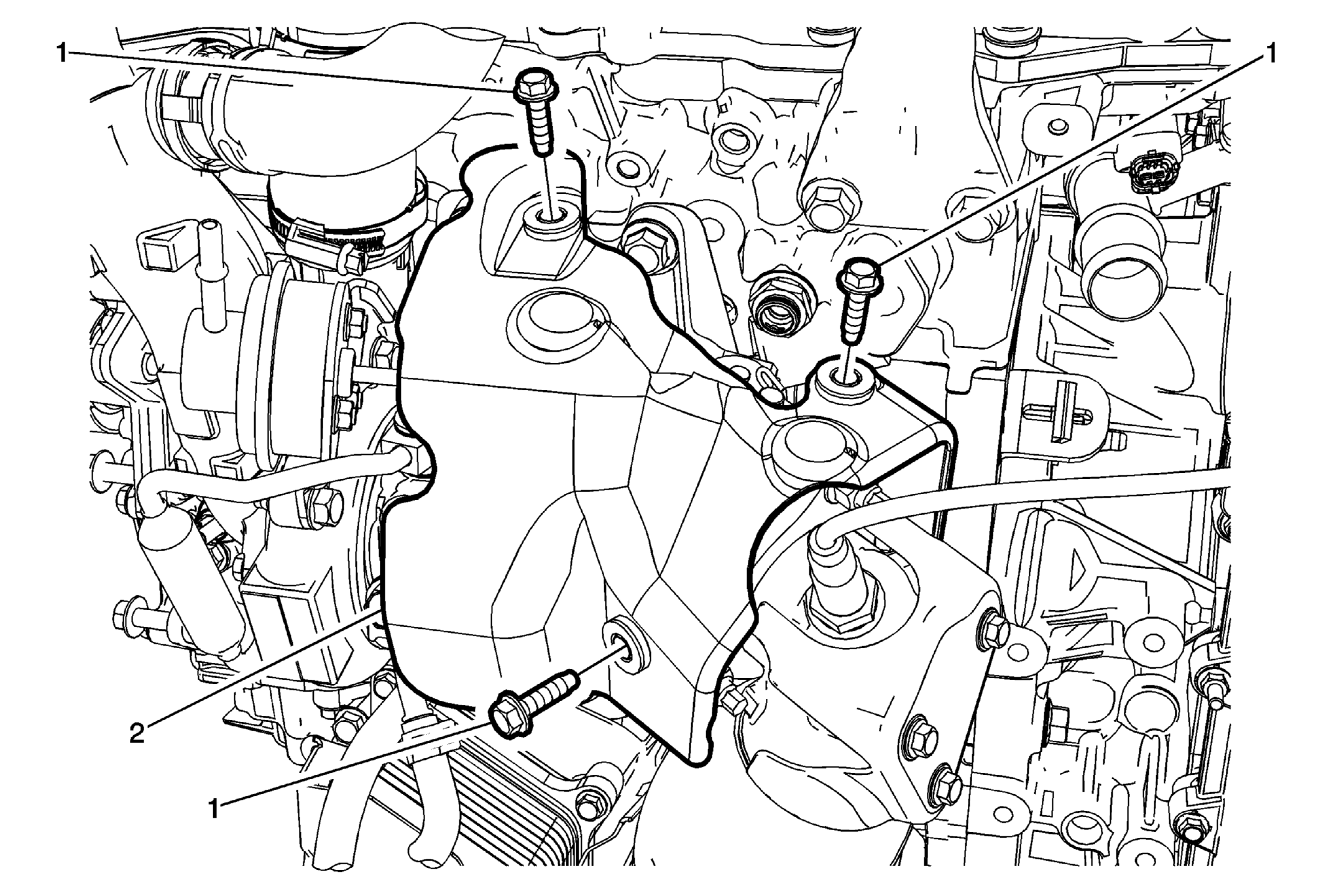

Fig 1: Turbocharger Heat Shield (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Relocate the turbocharger wastegate actuator vacuum tank. Refer to Turbocharger Wastegate Actuator Vacuum Tank Replacement (LF3) .
1	Turbocharger Heat Shield Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Turbocharger Heat Shield
