Turbocharger Air Inlet Adapter Replacement - Bank 2

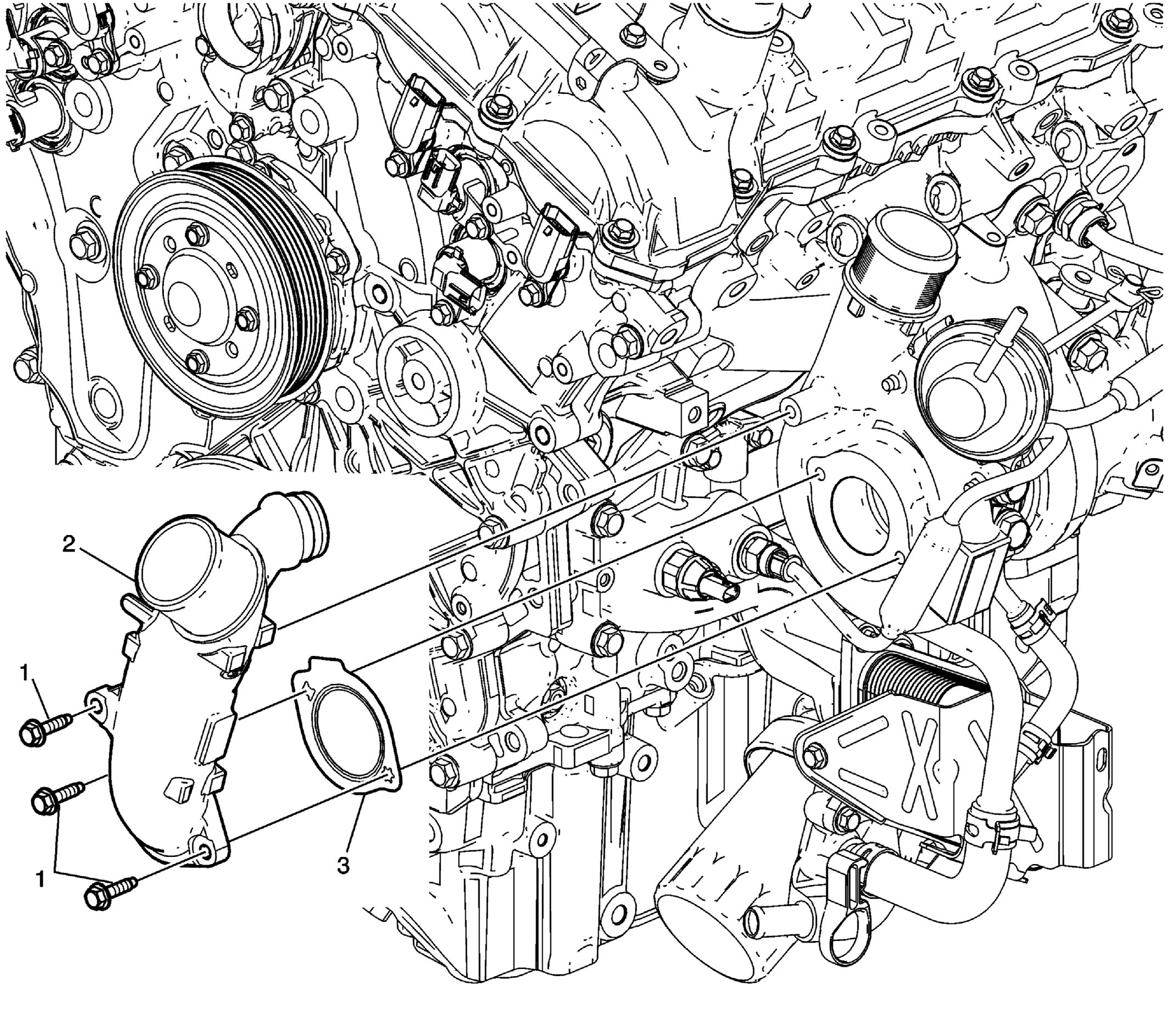

Fig 1: Turbocharger Air Inlet Adapter - Bank 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the generator. Refer to Generator Replacement (LF3) . Disconnect the charge air bypass valve (left side). Refer to Charge Air Bypass Valve Replacement - Left Side (LF3) .
1	Turbocharger Air Inlet Adapter Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Turbocharger Air Inlet Adapter
3	Turbocharger Air Inlet Adapter Seal Procedure Install a NEW turbocharger air inlet adapter seal.
