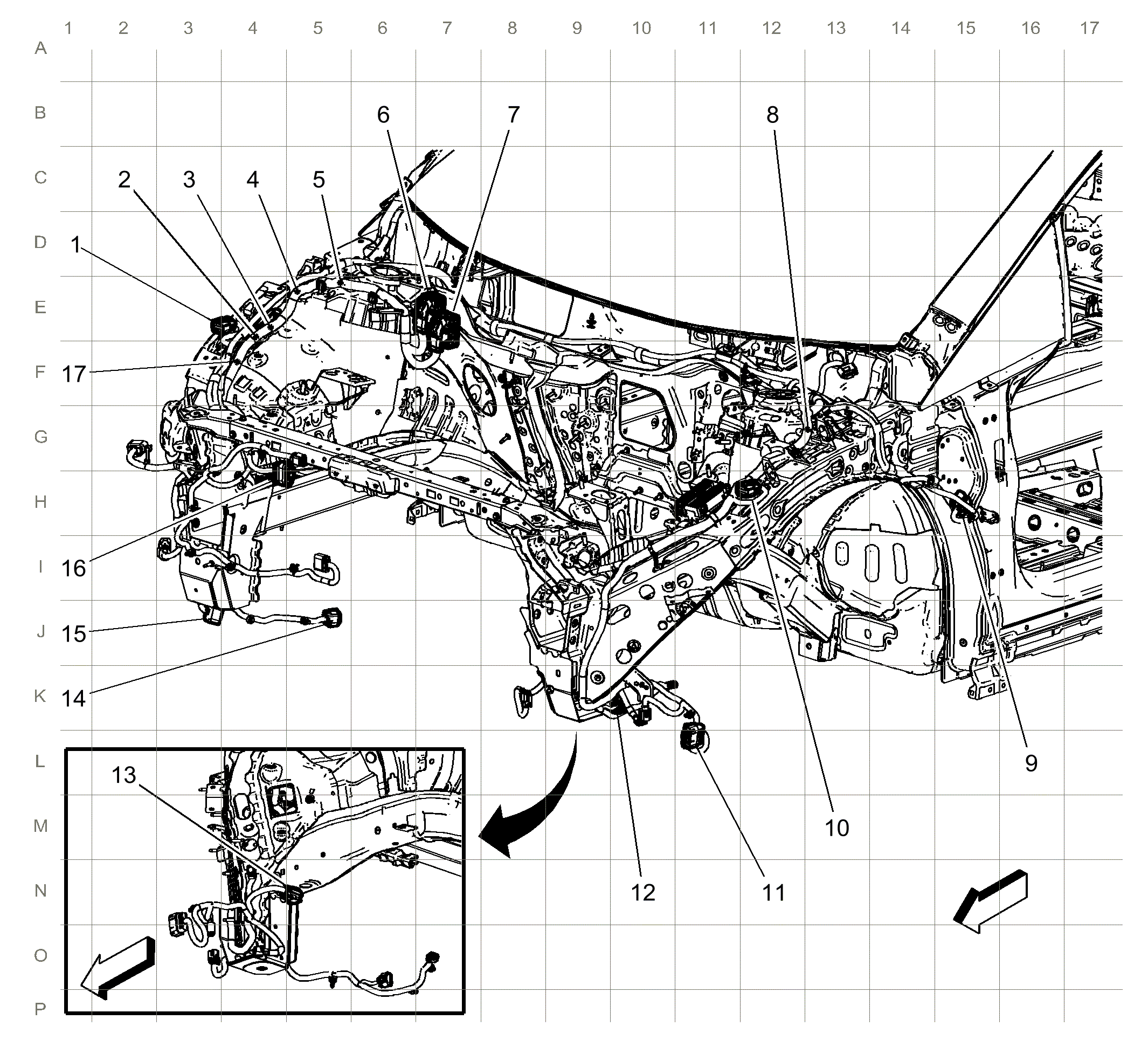

| 1. X120 X120 Forward Lamp Harness to Right Headlamp Assembly Harness |
| 2. J108 |
| 3. J107 |
| 4. J113 |
| 5. J105 |
| 6. X105 X105 Forward Lamp Harness to Body Harness |
| 7. X107 X107 Forward Lamp Harness to Body Harness |
| 8. J109 |
| 9. X98 Hybrid/EV Battery Charger Receptacle X98 Hybrid/EV Battery Charger Receptacle |
| 10. X110 X110 Forward Lamp Harness to Left Headlamp Assembly Harness |
| 11. X100 X100 Forward Lamp Harness to Front Fascia Harness (MAH) |
| 12. X108 X108 Forward Lamp Harness to Left Front Wheel Speed Sensor Jumper Harness |
| 13. X104 X104 Forward Lamp Harness to Cooling Fan Harness |
| 14. X109 X109 Forward Lamp Harness to Right Front Wheel Speed Sensor Jumper Harness |
| 15. X180 X180 Forward Lamp Harness to Auxiliary HVAC Harness |
| 16. X103 X103 Forward Lamp Harness to Cooling Fan Harness |
| 17. J112 |
