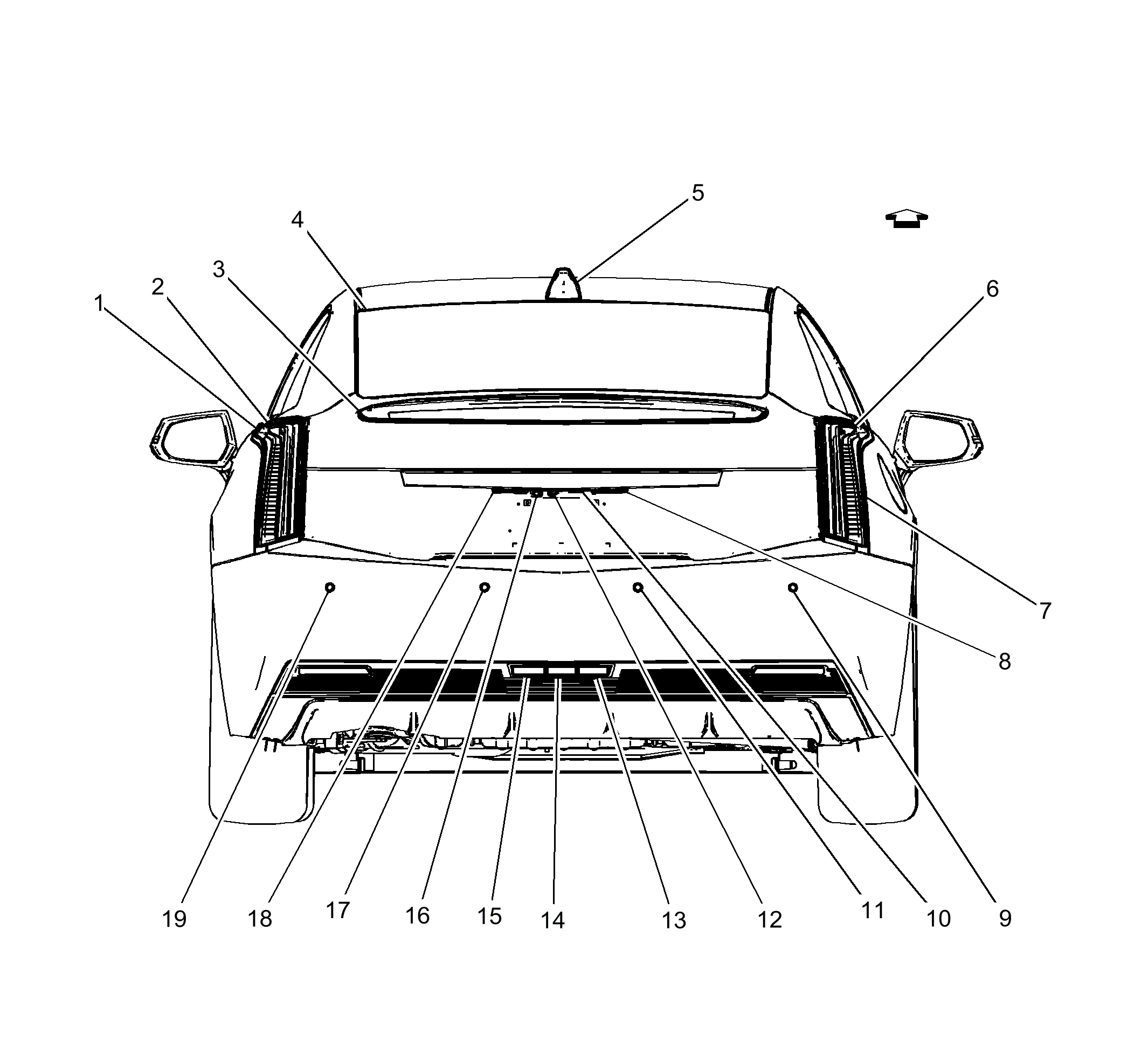

Rear of Vehicle Components
Rear of Vehicle Components
| Items |
|---|
| 1. E42L Tail Lamp Assembly - Left E42L Tail Lamp Assembly - Left (MAH)E42L Tail Lamp Assembly - Left (MAE) |
| 2. E4LR Turn Signal Lamp - Left Rear |
| 3. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 4. E18 Rear Defogger Grid E18 Rear Defogger Grid X1 |
| 5. T4G Cellular Phone, Navigation, and Digital Radio Antenna T4G Cellular Phone, Navigation, and Digital Radio Antenna X1 (MAH) |
| 6. E4RR Turn Signal Lamp - Right Rear |
| 7. E42R Tail Lamp Assembly - Right E42R Tail Lamp Assembly - Right (MAH)E42R Tail Lamp Assembly - Right (MAE) |
| 8. E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 9. B78H Rear Object Sensor - Right Outer B78H Rear Object Sensor - Right Outer |
| 10. B85 Rear Compartment Lid Key Cylinder Switch B85 Rear Compartment Lid Key Cylinder Switch |
| 11. B78F Rear Object Sensor - Right Middle B78F Rear Object Sensor - Right Middle |
| 12. S58A Rear Compartment Lid Unlatch Switch - Exterior S58A Rear Compartment Lid Unlatch Switch - Exterior |
| 13. E5B Backup Lamp - Right E5B Backup Lamp - Right |
| 14. E29R Fog Lamp - Rear (T79) E29R Fog Lamp - Rear |
| 15. E5A Backup Lamp - Left E5A Backup Lamp - Left |
| 16. B87 Rearview Camera B87 Rearview Camera |
| 17. B78E Rear Object Sensor - Left Middle B78E Rear Object Sensor - Left Middle |
| 18. E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 19. B78G Rear Object Sensor - Left Outer B78G Rear Object Sensor - Left Outer |
