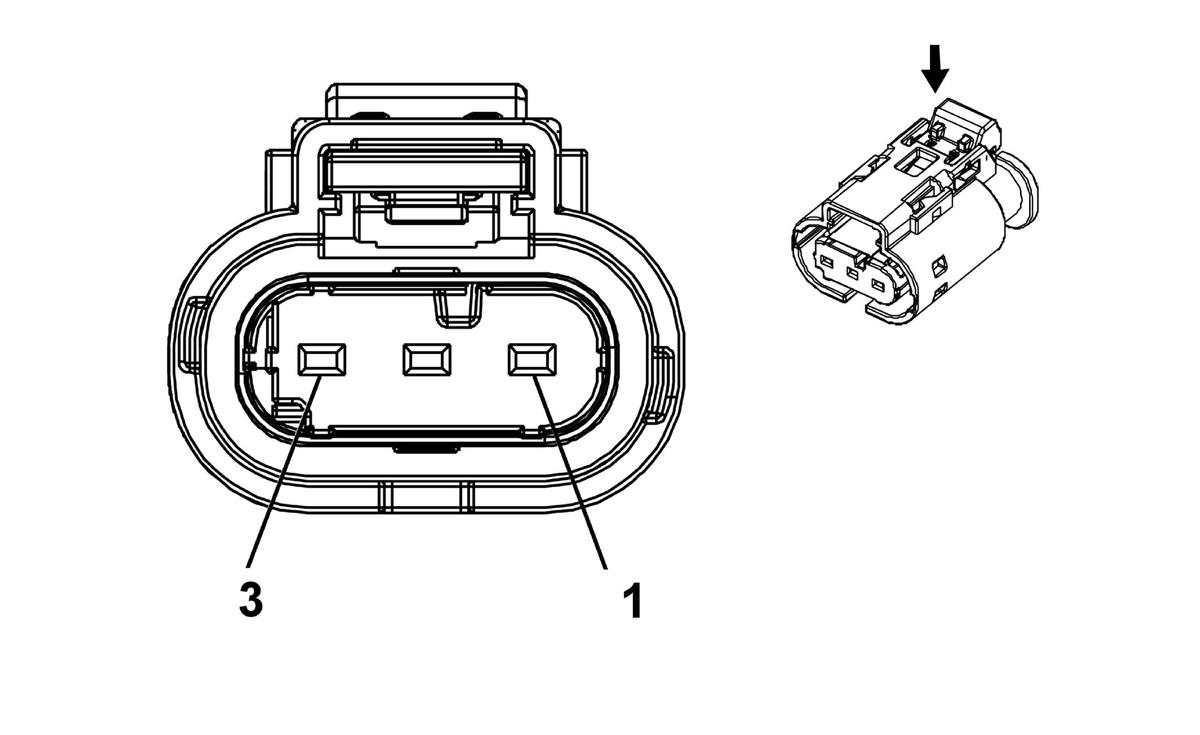

E29R Fog Lamp - Rear
|
|
Connector Part Information
- Harness Type: Rear Lamp
- OEM Connector: 09-4066-22
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.2 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
L-GN/WH |
1324 |
Backup Lamp Control |
I |
- |
| 2 |
0.5 |
BK |
650 |
Ground |
I |
- |
| 3 |
0.5 |
YE/GY |
122 |
Rear Fog Lamp Control |
I |
- |
