Front End Sheet Metal Diagonal Brace Replacement - Right Side (CTS)

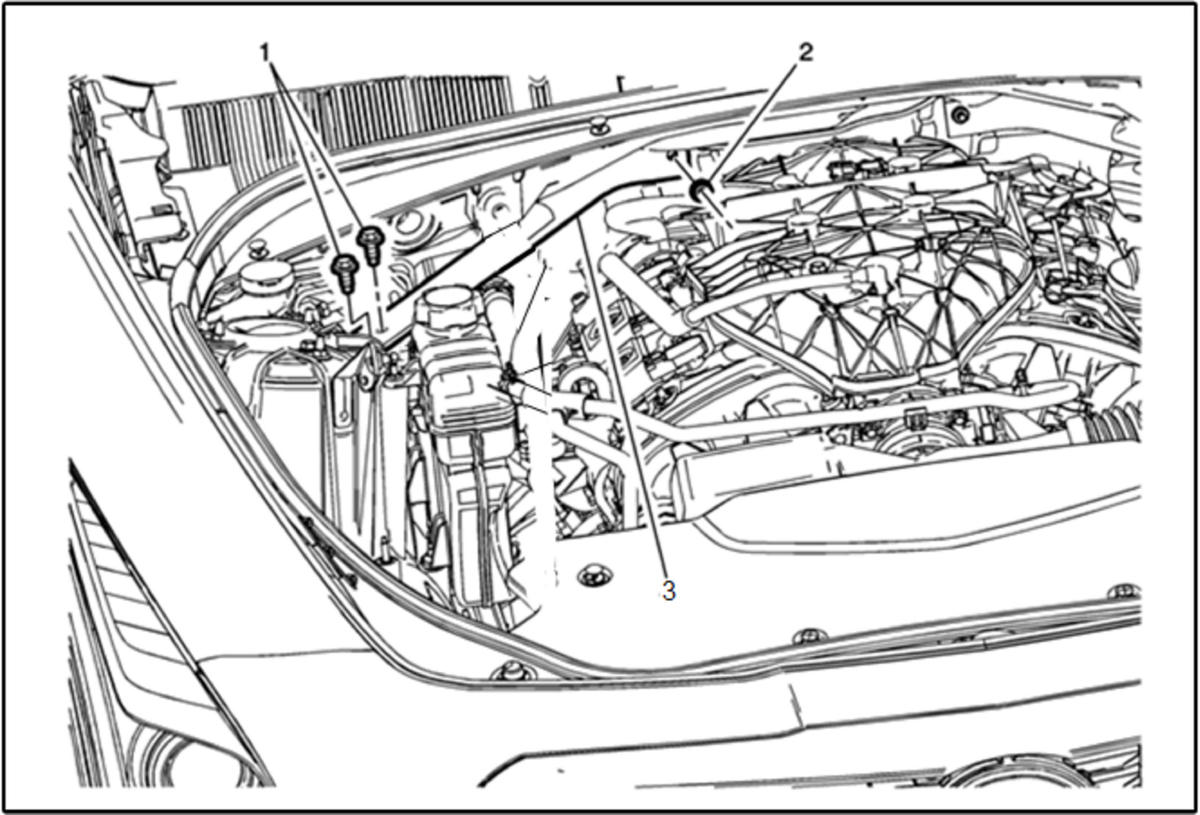

Fig 1: Front End Sheet Metal Diagonal Brace - Right Side (CTS)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the plenum front panel. Refer to Plenum Front Panel Replacement
1	Front End Sheet Metal Diagonal Brace Bolt (Qty 3) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front End Sheet Metal Diagonal Brace Nut Tighten 22 N.m (16 lb ft)
3	Plenum Panel Bolt Tighten 9 N.m (80 lb in)
4	Front End Sheet Metal Diagonal Brace
