Radiator Air Side Baffle Replacement - Right Side (LF3)

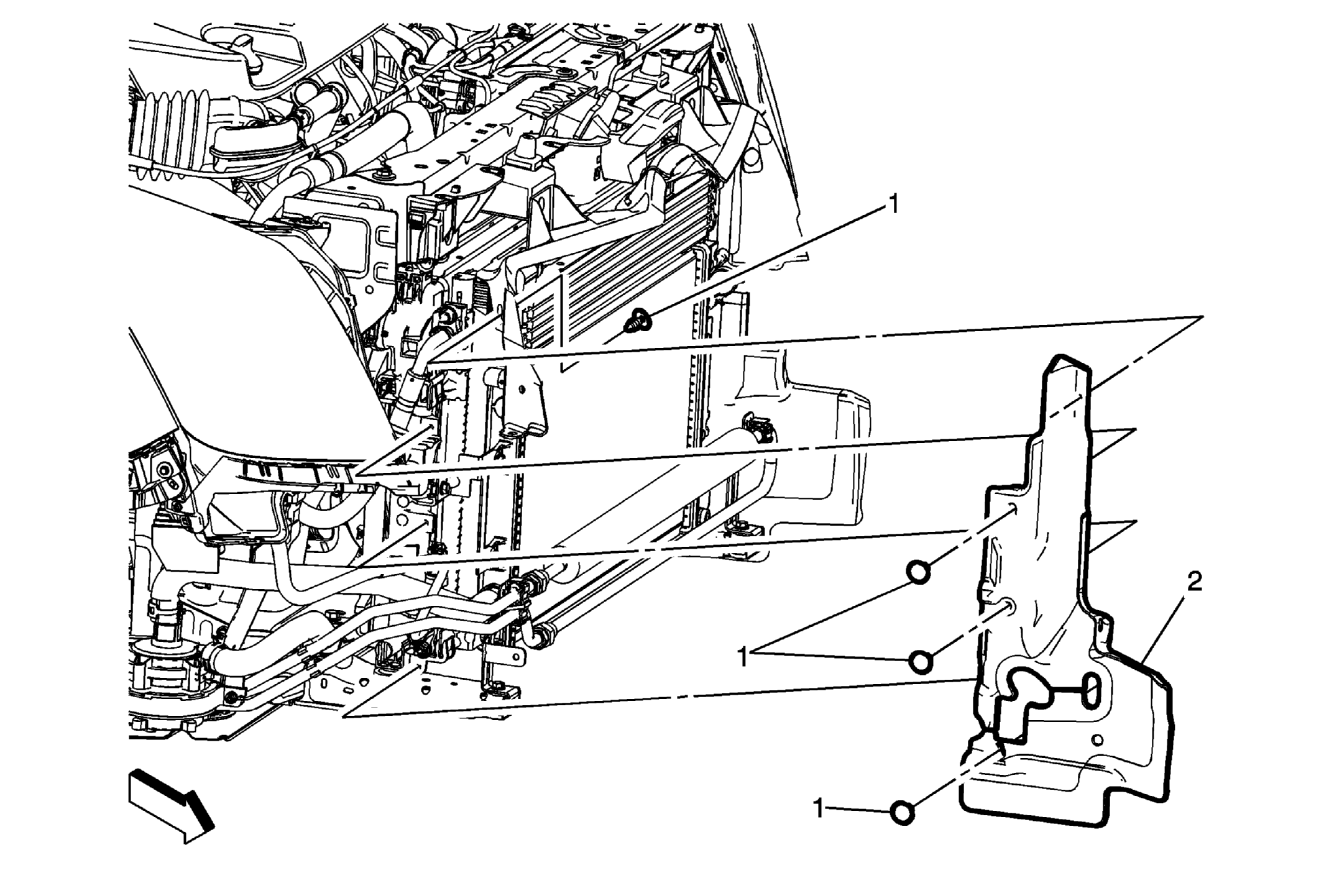

Fig 1: Radiator Air Side Baffle - Right Side (LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove front bumper impact bar. Refer to Front Bumper Impact Bar Replacement . Remove the radiator air seal from the radiator air side baffle and deflector. Refer to Radiator Air Seal Replacement (LF3) .
1	Radiator Air Side Baffle and Deflector Retainer (Qty: 4)
2	Radiator Air Side Baffle and Deflector

Callout

Component Name

Preliminary Procedure

Remove front bumper impact bar. Refer to Front Bumper Impact Bar Replacement .
Remove the radiator air seal from the radiator air side baffle and deflector. Refer to Radiator Air Seal Replacement (LF3) .

Radiator Air Side Baffle and Deflector Retainer (Qty: 4)

Radiator Air Side Baffle and Deflector
