Front Bumper Impact Bar Replacement

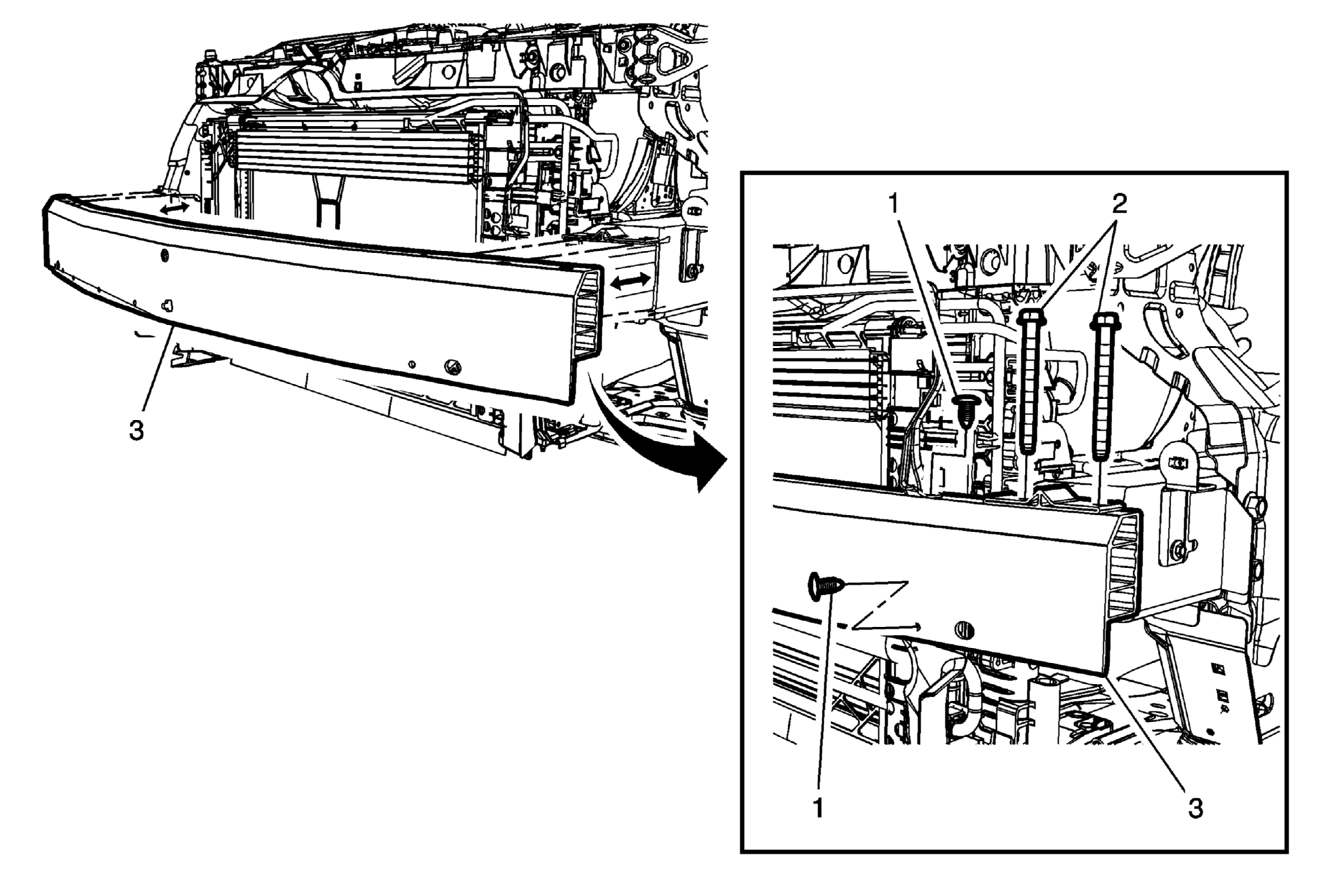

Fig 1: Front Bumper Impact Bar & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove both headlamps. Refer to Headlamp Replacement .
1	Push-In Retainer (Qty: 5) Procedure Remove the required push-in retainers from the radiator air side baffle and air deflector.
2	Front Bumper Impact Bar Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Counterhold the front bumper impact bar nuts. Tighten 22 N.m (16 lb ft)
3	Front Bumper Impact Bar
