Radiator Air Side Baffle Replacement - Left Side (LF3)

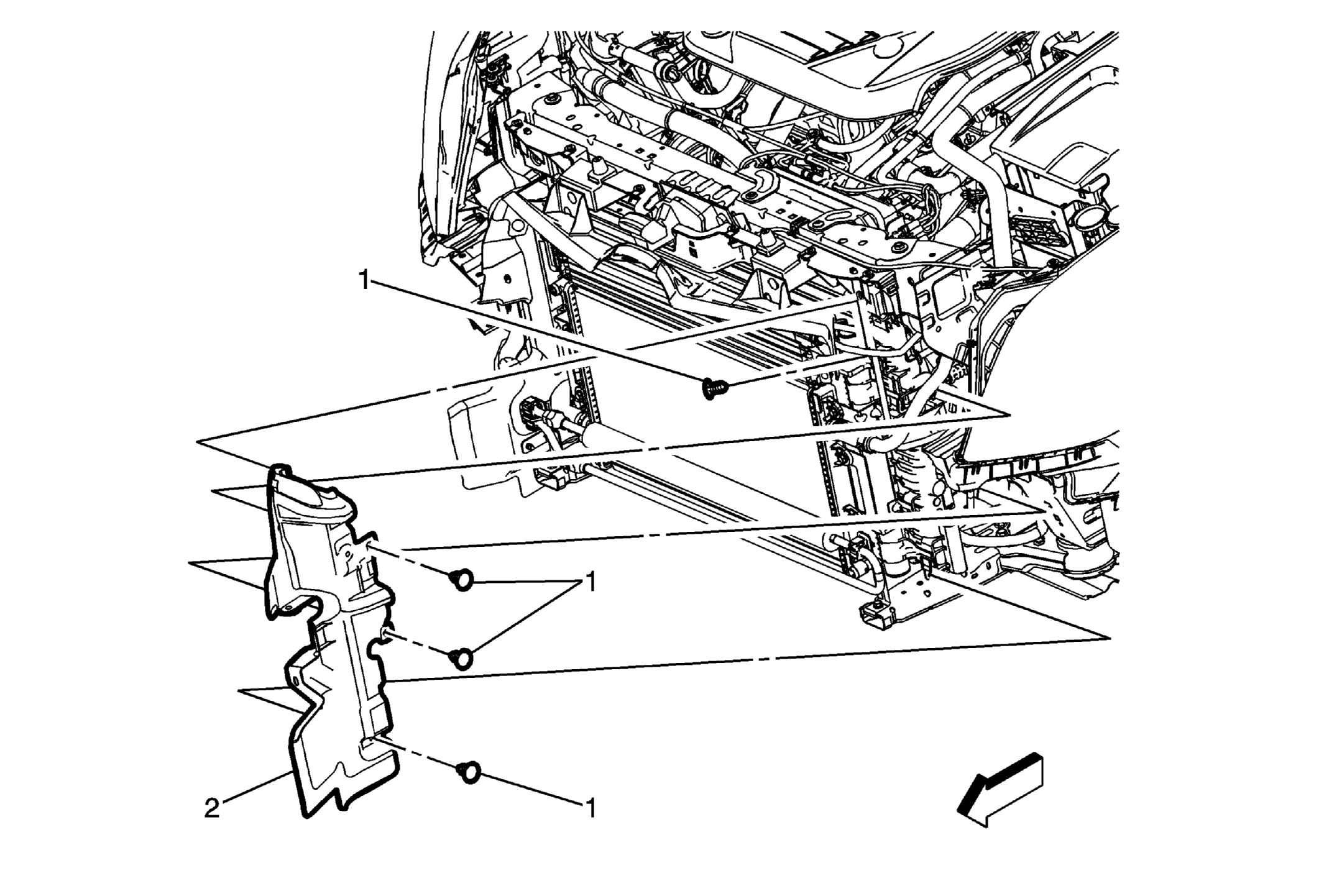

Fig 1: Radiator Air Side Baffle - Left Side (LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove front bumper impact bar. Refer to Front Bumper Impact Bar Replacement .
1	Radiator Air Side Baffle and Deflector Retainer (Qty: 4)
2	Radiator Air Side Baffle and Deflector
