Preliminary Procedures
- Remove the front wheelhouse liner screws to the fascia. Refer to Front Wheelhouse Front Liner Replacement
.
- Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement
.
|

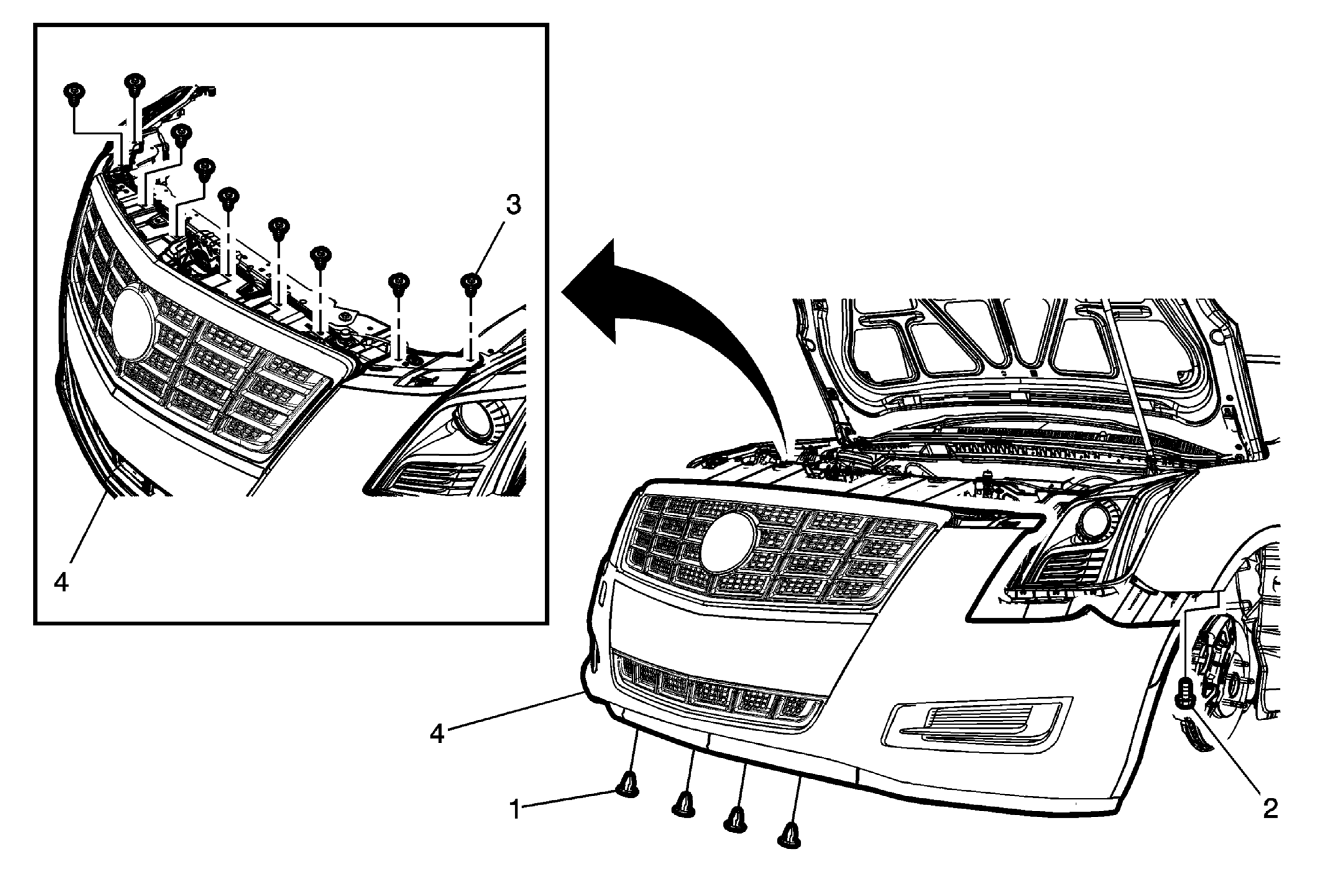

| 1 |
Front Bumper Fascia Lower Push-In Retainer (Qty: 4) |
| 2 |
Front Bumper Fascia Bolt (Qty: 2)
Tighten
3 N.m (27 lb in) |
| 3 |
Front Bumper Fascia Upper Screw (Qty: 9)
Tighten
3 N.m (27 lb in) |
| 4 |
Front Bumper Fascia Procedure
- Loosen the lower impact bar bolt at the impact bar bracket.
- Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide.
- Disconnect any electrical connectors.
- Transfer components as necessary.
|
