Rear Window Panel Trim Replacement (Coupe)

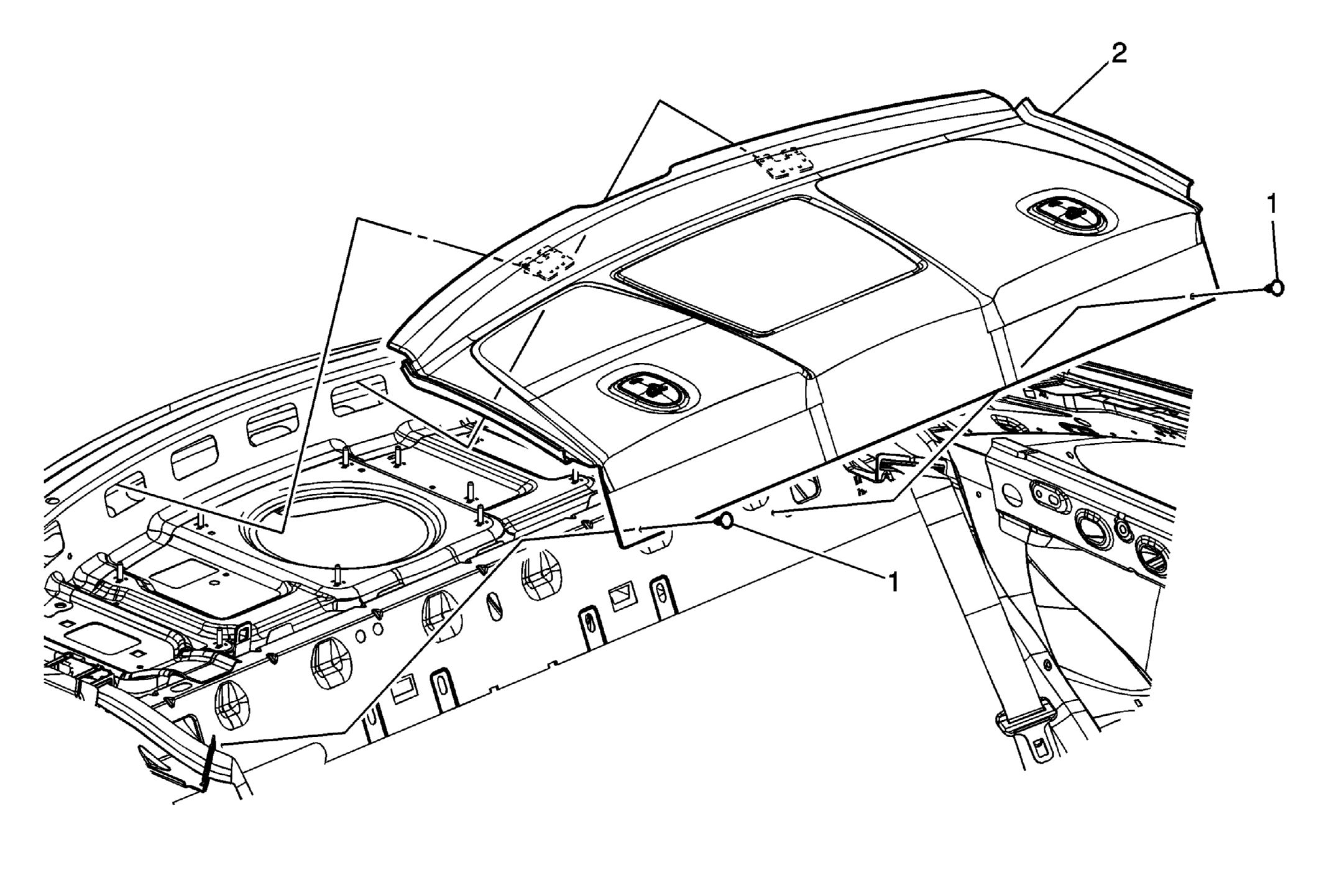

Fig 1: Rear Window Panel Trim & Retainers (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable SIR system. Refer to SIR Disabling and Enabling . Remove body side window rear garnish molding. Refer to Body Side Window Rear Garnish Molding Replacement (Coupe) . Remove the rear seat back . Refer to Rear Seat Back Cushion Removal and Installation (Coupe) .
1	Rear Window Trim Panel Retainer (Qty: 2)
2	Rear Window Trim Panel Assembly Procedure Disconnect electrical connector.

Callout

Component Name

Preliminary Procedures

Rear Window Trim Panel Retainer (Qty: 2)

Rear Window Trim Panel Assembly
Procedure
Disconnect electrical connector.
