Body Side Window Rear Garnish Molding Replacement (Coupe)

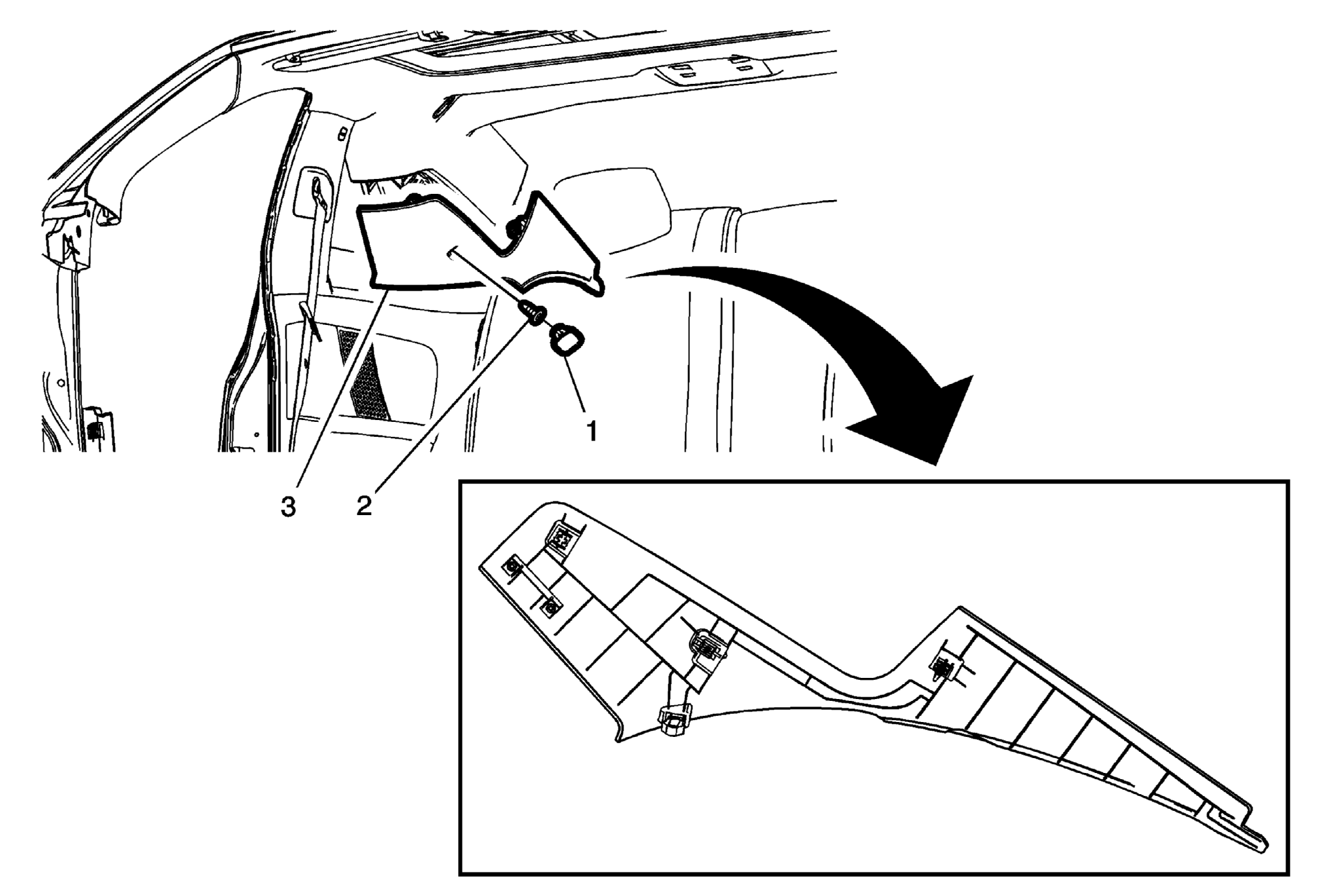

Fig 1: Body Side Window Rear Garnish Molding (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Airbag Plate
2	Body Side Window Rear Garnish Molding Fastener CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
3	Body Side Window Rear Garnish Molding Assembly Procedure Grasp molding and pull outward to disengage integral retainers. Rotate body side window rear garnish molding to disengage the plastic snap that interlocks to the quarter inner trim finish panel.
