Front Side Door Inside Handle Cable Replacement

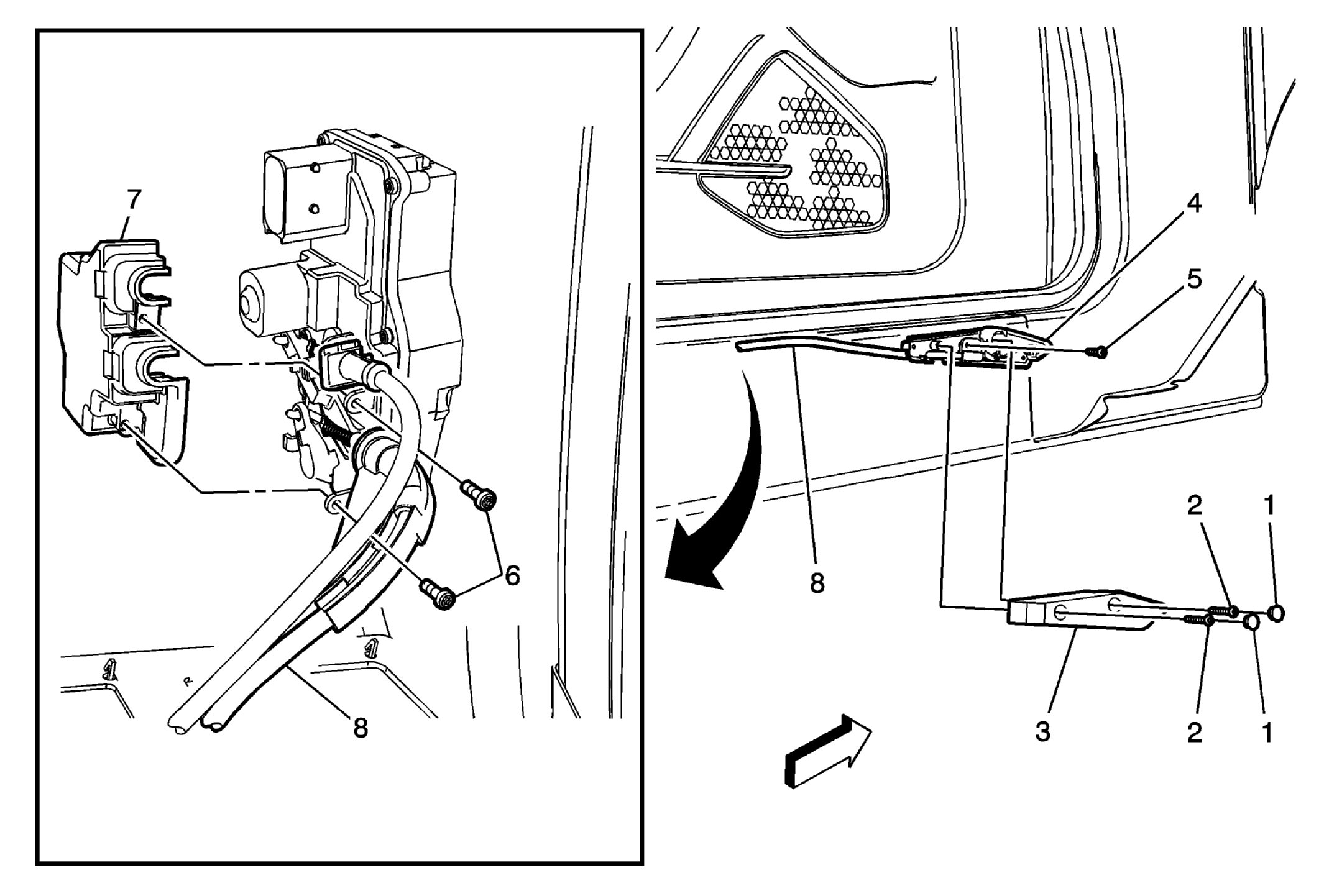

Fig 1: Front Side Door Inside Handle Cable & Components

Courtesy of GENERAL MOTORS COMPANY

Preliminary Procedure Remove the body side front lower trim panel. Refer to Body Side Front Lower Trim Panel Replacement (Coupe) .
1	Front Side Door Inside Handle Screw Covers (Qty: 2) Procedure Use a suitable tool to remove the screw covers from the handle. TIP: The handle and cable should not be separated.
2	Front Side Door Inside Handle Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
3	Front Side Door Inside Handle Cover Procedure Use a suitable tool to remove the cable from the handle.
4	Front Side Door Inside Handle and Cable
5	Front Side Door Inside Handle and Cable Screw Procedure Use a suitable tool to disconnect the upper cable from the front side door lock. Tighten 5 N.m (44 lb in)
6	Front Side Door Latch Cable Cover Screws (Qty: 2) Procedure Remove the front side door latch. Refer to Front Side Door Latch Replacement (Coupe) . Pull the door latch out of the inner panel to remove the cover screws and cables. Disconnect the electrical connector. Tighten 5 N.m (44 lb in)
7	Front Side Door Latch Cable Cover
8	Front Side Door Inside Handle and Cable TIP: Remove the cable and handle as one.
