Front Side Door Latch Replacement (Coupe)

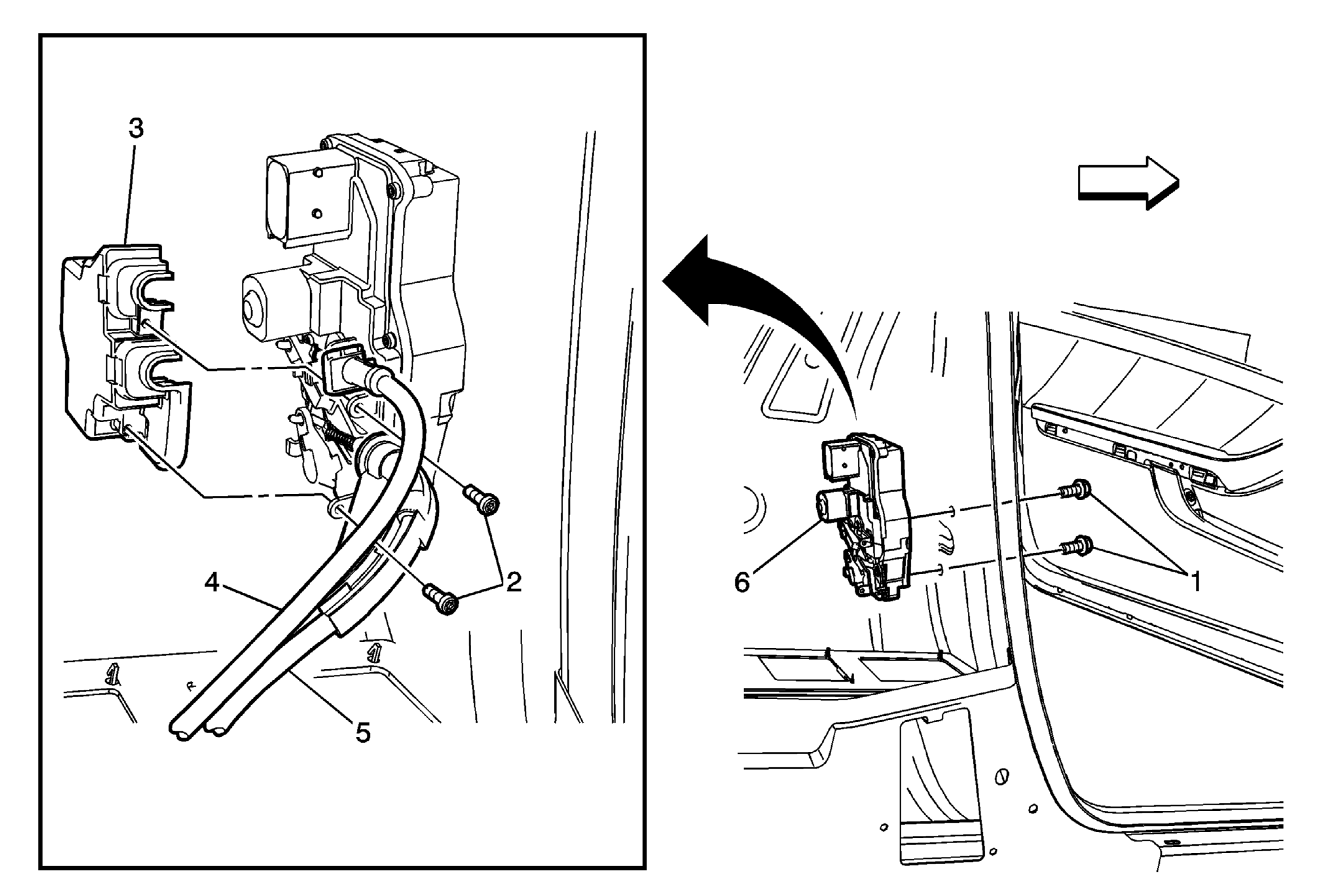

Fig 1: Front Side Door Latch & Components (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Preliminary Procedure Remove the body side front lower trim panel. Refer to Body Side Front Lower Trim Panel Replacement (Coupe) . Remove the seat belt retractor Pretensioner. Refer to Seat Belt Retractor Pretensioner Replacement - Front (AQ9) .
1	Front Side Door Latch Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Pull the door latch out of the inner panel to access the cover screws that conceal the cable. Tighten 10 N.m (89 lb in)
2	Front Side Door Latch Cable Cover Screws (Qty: 2) Procedures Pull the door latch out of the inner panel to remove the cover screws and cables. Disconnect the electrical connector. Tighten 5 N.m (44 lb in)
3	Front Side Door Latch Cable Cover
4	Rear Compartment Lid Interior Release Latch Cable Procedure Disconnect the upper cable from the front side door lock release.
5	Front Side Door Inside Cable Procedure Disconnect the lower cable from the front side door lock release.
6	Front Side Door Latch
