Positive Crankcase Ventilation Hose/Pipe/Tube Replacement

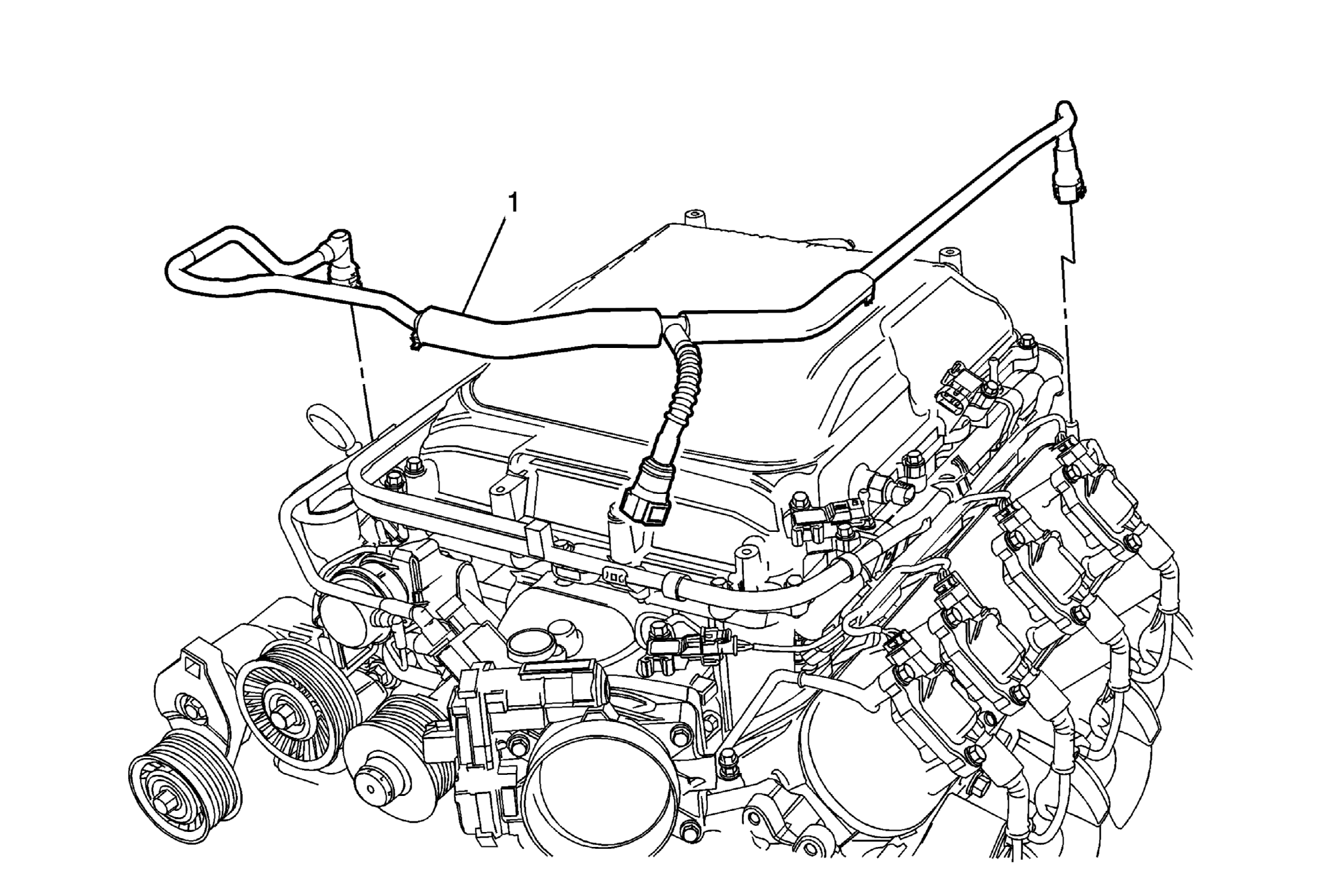

Fig 1: Identifying Positive Crankcase Ventilation Hose/Pipe/Tube

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Rear .
1	Positive Crankcase Ventilation Hose/Pipe/Tube Procedure Disconnect the electrical connectors, as needed. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Rear .

Positive Crankcase Ventilation Hose/Pipe/Tube

Procedure
