Intake Manifold Cover Replacement - Rear

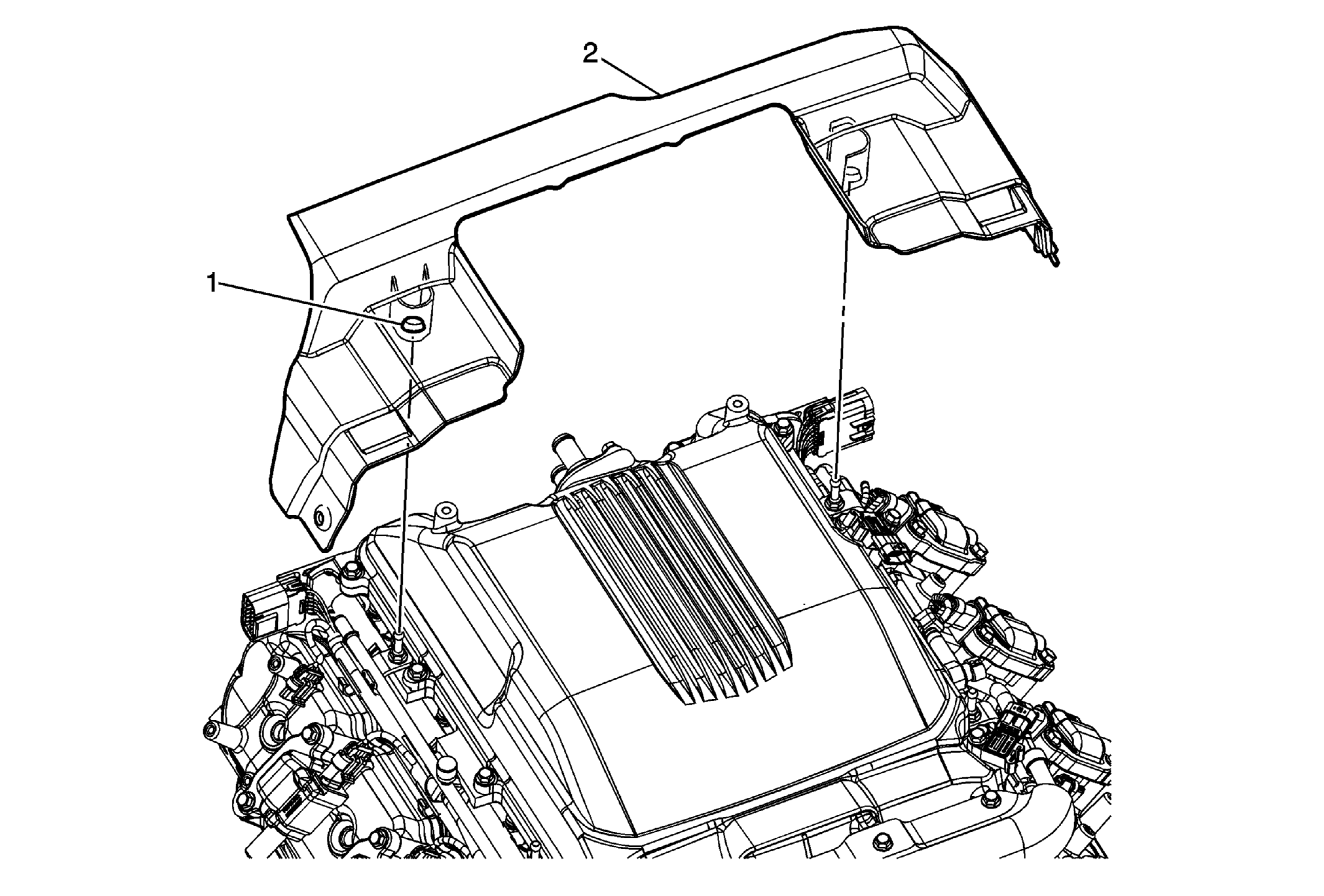

Fig 1: Identifying Intake Manifold Cover - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the intake manifold cover replacement. Refer to Intake Manifold Cover Replacement - Front
1	Intake Manifold Cover Fastener (Qty: 2)
2	Intake Manifold Cover Procedure  Transfer components as necessary.
