Intake Manifold Cover Replacement - Front

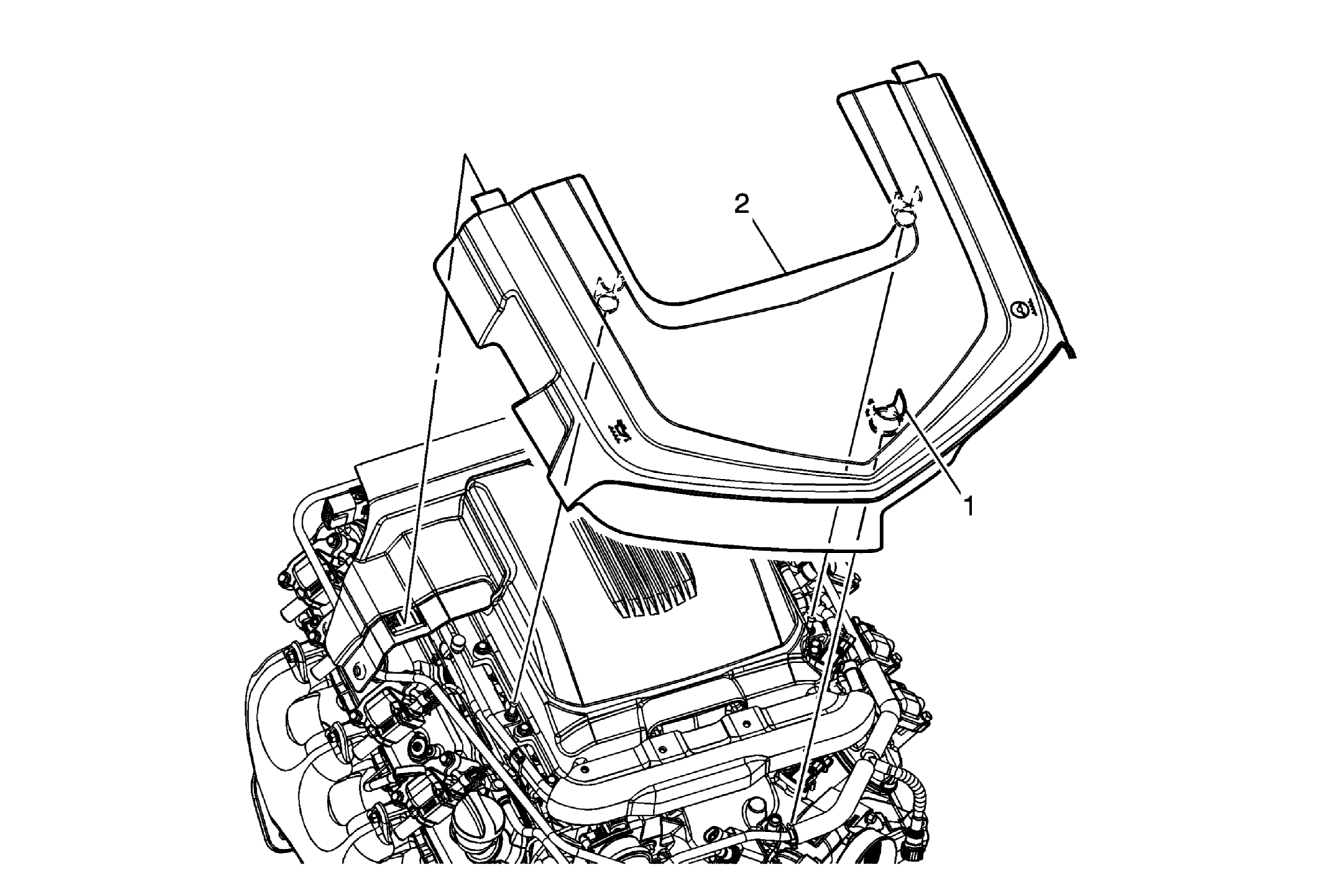

Fig 1: Identifying Intake Manifold Cover - Front
GM2153740Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Manifold Cover Fastener (Qty: 3)
2 Intake Manifold Cover

Procedure

  1. Slide the intake manifold cover forward to remove.
  2. Transfer components as necessary.
