Engine Oil Pressure Sensor and/or Switch Replacement

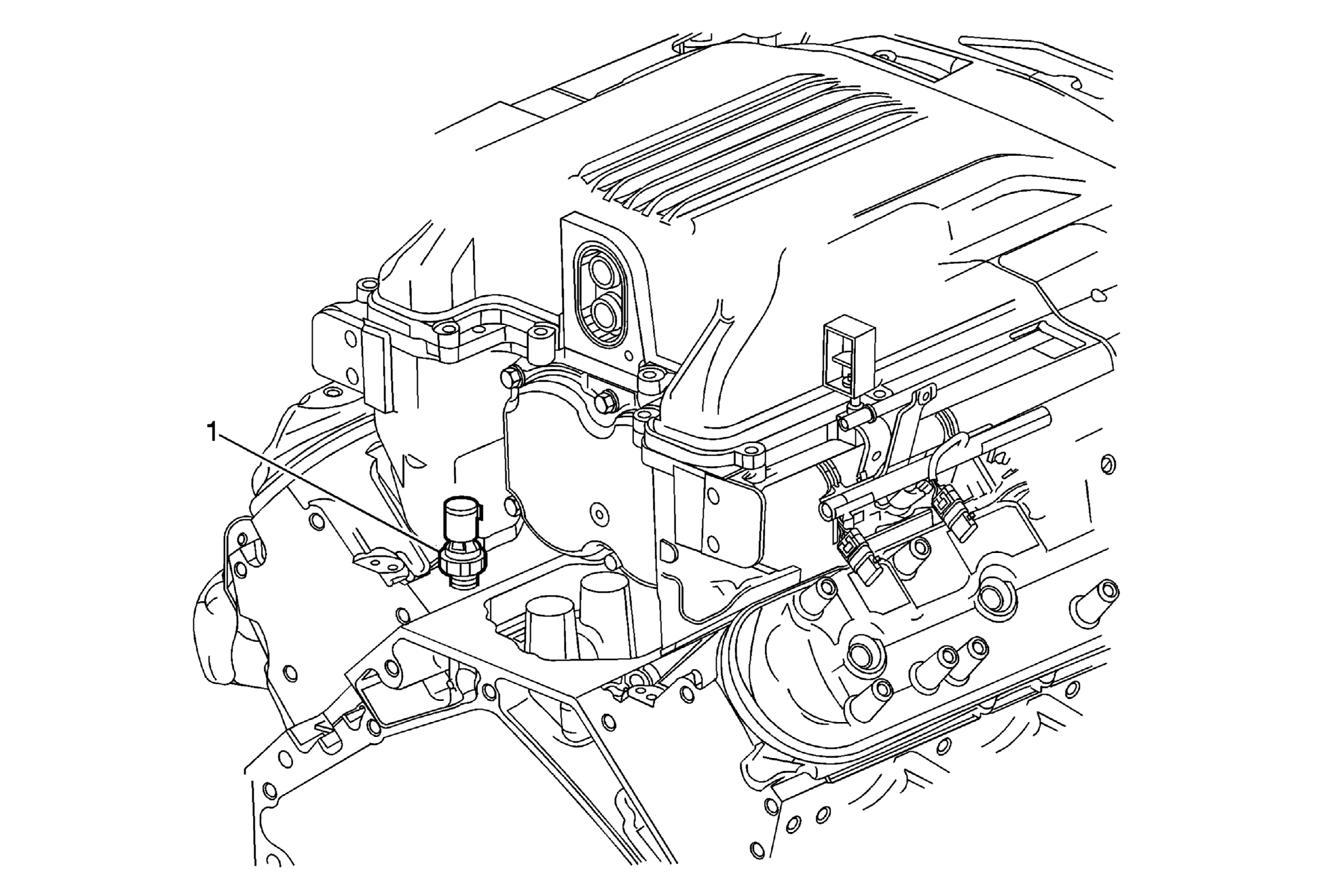

Fig 1: Identifying Engine Oil Pressure Sensor And/Or Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear intake manifold cover. Refer to Intake Manifold Cover Replacement - Rear .
1	Engine Oil Pressure Sensor and/or Switch CAUTION: Refer to Fastener Caution . Procedure Disconnect any electrical connectors. Transfer components as necessary. Tighten 35 N.m (25 lb ft)

Callout

Component Name

Preliminary Procedure
Remove the rear intake manifold cover. Refer to Intake Manifold Cover Replacement - Rear .

Engine Oil Pressure Sensor and/or Switch

CAUTION:

Procedure

Tighten
35 N.m (25 lb ft)
