Supercharger Air Inlet Pressure Sensor Replacement

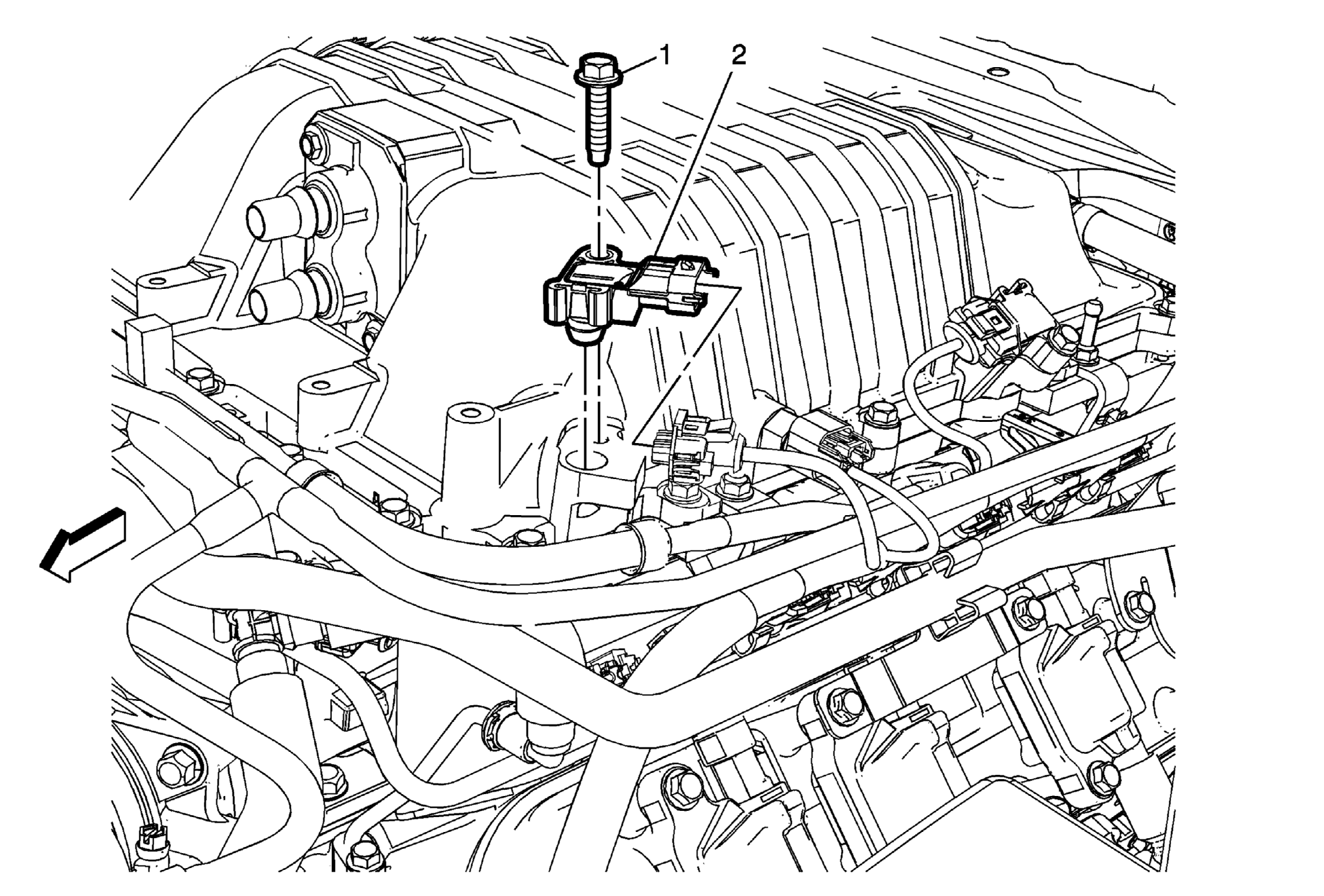

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front manifold cover. Refer to Intake Manifold Cover Replacement - Front . |
|
| 1 | Super Charger Air Pressure Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 (7 lb ft) |
| 2 | Super Charger Air Inlet Pressure Sensor Procedure Disconnect the super charger pressure sensor harness connector.
NOTE:
Always install the NEW O-ring provided with the super charger pressure sensor. |
